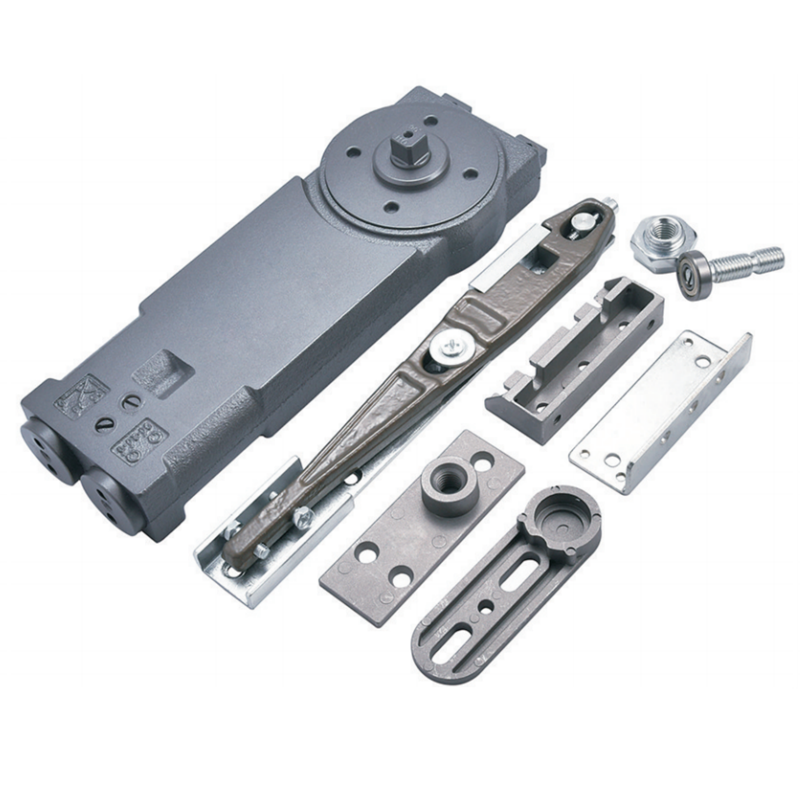

F-868 hydraulic floor spring and mounting accessories on a white background

F-868 / T-868 Hydraulic Floor Spring

Brand:
THETOP

F-868 / T-868 hydraulic floor spring for aluminum ceiling and door applications, suitable for doors up to 1000 mm wide and 130 kg. Contact THETOP for configuration and quotation.

Category:
Request Product Materials

T-868 Aluminum Ceiling Special Hydraulic Floor Spring

Double Crlinder Hydraulic Floor Spring

Model:F-868/ T-868

Replaceable Spindle head :NO

Applicable door width:1000mm

Suitable door weight:130Kg

  • 90 hold on,max opening at 130° ,non-hold/double hold on are available if requested.
  • Left and right,forward and backward,up and down can be adjusted 6mm.

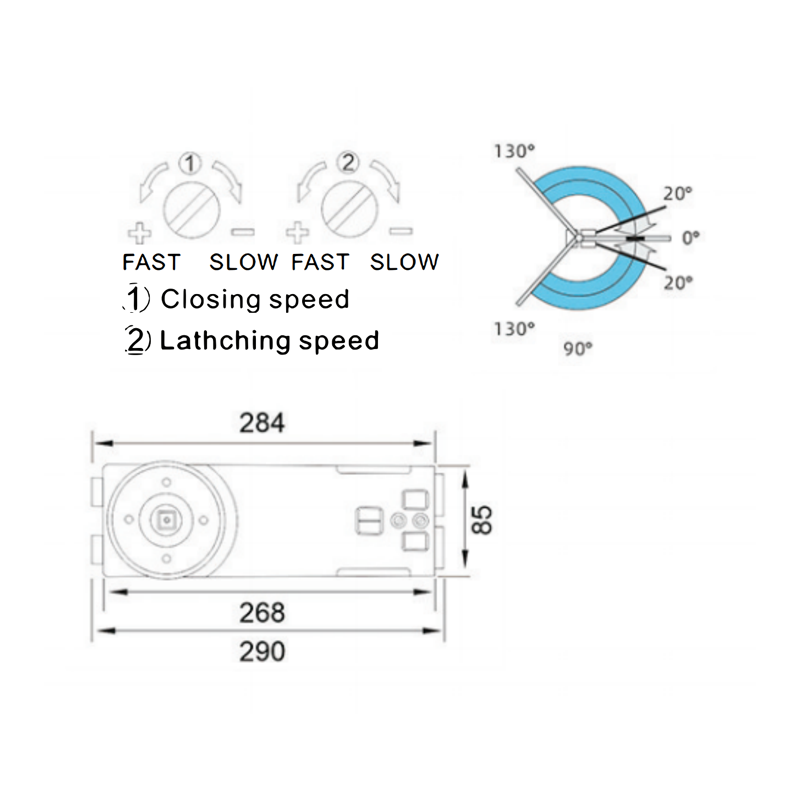

  • Two closing speed valves,for 90°-20° and 20°-0° .

.Passed test of 500,000 cycles.
