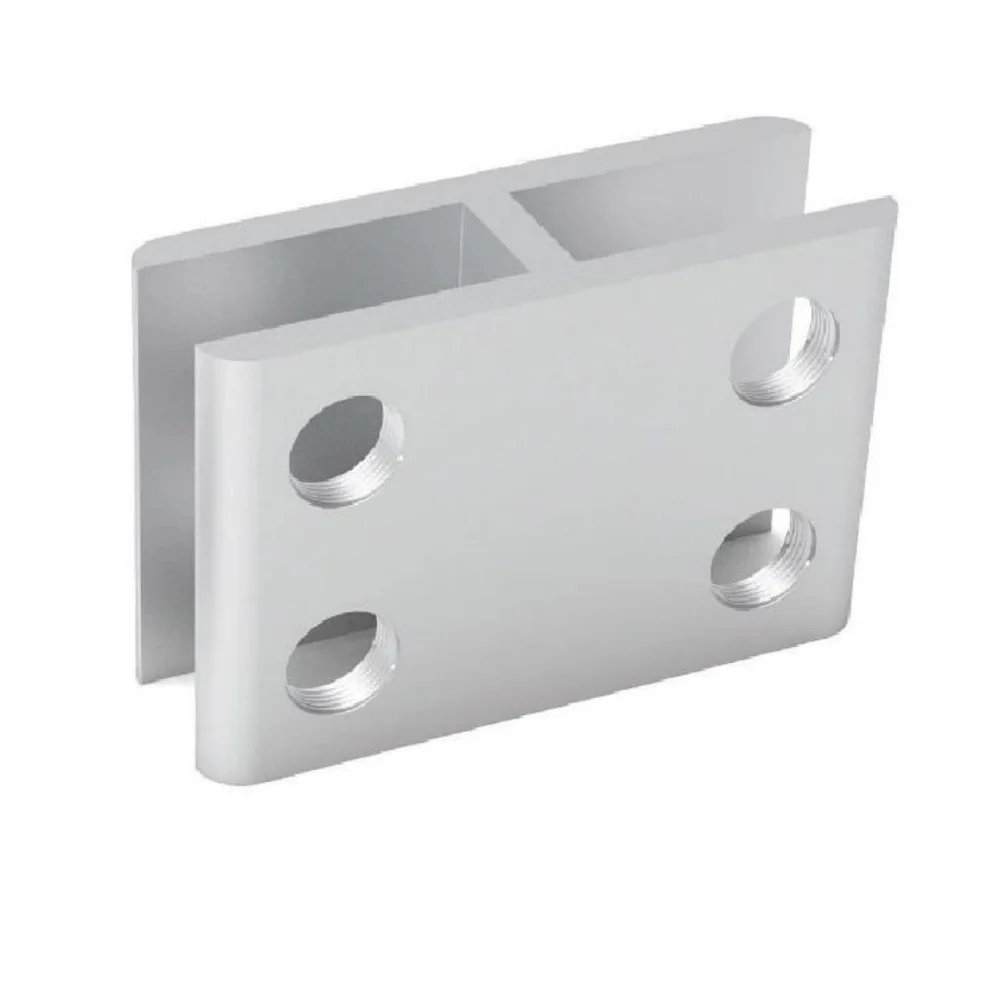

GC-30 180 Degree Glass Panel Connector
GC-30 180° glass panel connector for straight inline glass-to-glass joints in partition and railing systems. Overall size: 60 × 40 × 20 mm; catalog body thickness: 4 mm; catalog lists compatibility with approximately 6–12 mm glass. Confirm gasket selection and finish before ordering.
GC-30 180 Degree Glass Panel Connector
GC-30 180° glass panel connector for straight inline glass-to-glass joints in partition and railing systems. Overall size: 60 × 40 × 20 mm. Catalog body thickness: 4 mm. Listed glass compatibility: approximately 6–12 mm. Confirm gasket selection, finish and mounting arrangement for the exact glass build-up. Material grade is not specified in the source catalog. Contact THETOP with glass thickness, joint layout and quantity for quotation.
Product and Selection Information
| Connector layout | 180 Degree |
|---|---|
| Overall size | 60 × 40 × 20 mm |
| Catalog body thickness | 4 mm |
| Glass and gasket compatibility | Confirm glass thickness, glass type, gasket selection and mounting arrangement for the exact installation. |
| Material and finish | Request confirmation of material grade and available finish in the quotation. |
| Supplied parts | Confirm the connector, gaskets and fixing component list before ordering. |
Before Ordering
Provide the panel layout, glass thickness and dimensions, connector quantity and positions, installation environment and required finish. Request the glass preparation drawing and fitting instructions before ordering fabricated glass. For replacements, send photos and measurements of the existing connector, joint and fixings.
Buyer FAQs
How do I select the 180-degree layout?
Provide a drawing of the intended straight panel joint. Confirm joint gap, panel alignment, connector positions and fixing details against the supplied configuration.
What glass thickness and gaskets should I specify?
The compatible range is not reliably specified in the current product data. Provide the actual glass thickness and type, then confirm the matching gasket and supplied connector configuration.
Does the glass need holes or edge preparation?
Request the preparation drawing for the exact fitting. Confirm any holes, cutouts, edge clearances and gasket arrangement with the installer before glass fabrication.
Can this connector be used as part of a railing system?
Confirm its intended role and compatibility with the complete railing design. The connector dimensions alone do not establish a system load rating; request project-specific selection and installation details.
What information is needed for a quotation?
Send the exact GC-30 layout, quantity, panel drawing, glass thickness and dimensions, required material grade and finish, delivery address and postcode. Confirm included parts and any additional components.
