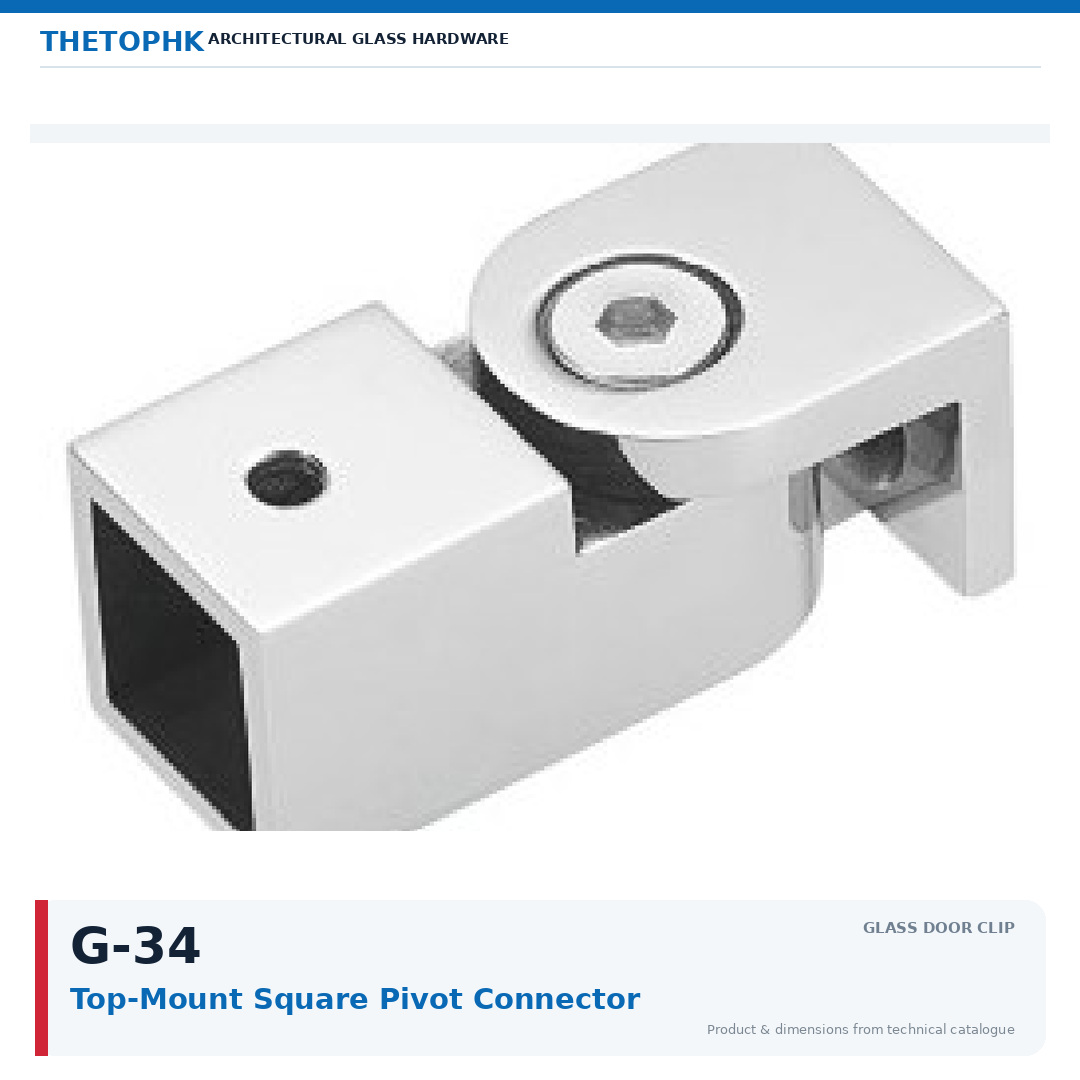

G-34 Top-Mount Square Pivot Connector
Top-mount square pivot connector for compatible frameless glass-door assemblies. Suitable for project hardware layouts where compact glass fittings are required. Confirm glass thickness, exact fitting dimensions, mounting position, finish and quantity before ordering.
G-34 Top-Mount Square Pivot Connector
The G-34 is a top-mount square pivot connector for compatible frameless glass-door assemblies. Its straight-edged form supports a coordinated hardware layout. Select the fitting against the project drawing and the mating components before ordering.
Product and Selection Information
| Model / SKU | G-34 |
|---|---|
| Fitting type | Top-mount square pivot connector |
| Application | Compatible frameless glass-door assemblies; confirm the mounting arrangement for your project. |
| Glass thickness | Request the product drawing and confirm compatibility before ordering. |
| Dimensions and connections | Request the dimensional drawing, mounting details and mating-component information. |
| Material, finish and accessories | Confirm the available configuration and included components in the quotation. |
Before Ordering
Send the glass thickness, door dimensions, top mounting location, project drawing or clear installation photos, required finish and quantity. For a replacement fitting, include measurements and photos of the existing connector and the components it joins.
Confirm the complete door hardware arrangement, including the mating pivot components and any floor spring or closer, where applicable. Do not select the connector by appearance alone.
G-34 Buyer FAQs
What is the G-34 used for?
The G-34 is a top-mount square pivot connector for compatible frameless glass-door assemblies. Confirm its connection and mounting details against your door hardware drawing.
Which glass thickness is compatible?
A supported glass-thickness range is not listed on this page. Send your glass thickness and request the product drawing before confirming the configuration.
Can the G-34 replace an existing top pivot fitting?
Replacement compatibility requires checking fitting dimensions, mounting position, connection details and the mating components. Send photos and measurements for review before ordering.
What material, finish and accessories are supplied?
Confirm the material, available finish and included accessories in the quotation. Ask for a component list if you need a complete assembly or replacement parts.
What information is needed for a quotation?
Provide model G-34, quantity, glass thickness, door dimensions, fitting drawings or photos, required finish, delivery address and postcode. These details help confirm the configuration and calculate shipping.
