G-01 Long Pivot Rail Assembly
Long pivot rail assembly for frameless glass-door pivot systems. Supports positioning and connection of compatible pivot hardware. Confirm glass thickness, fitting dimensions, pivot location, mounting arrangement, finish and quantity before ordering.
G-01 Long Pivot Rail Assembly

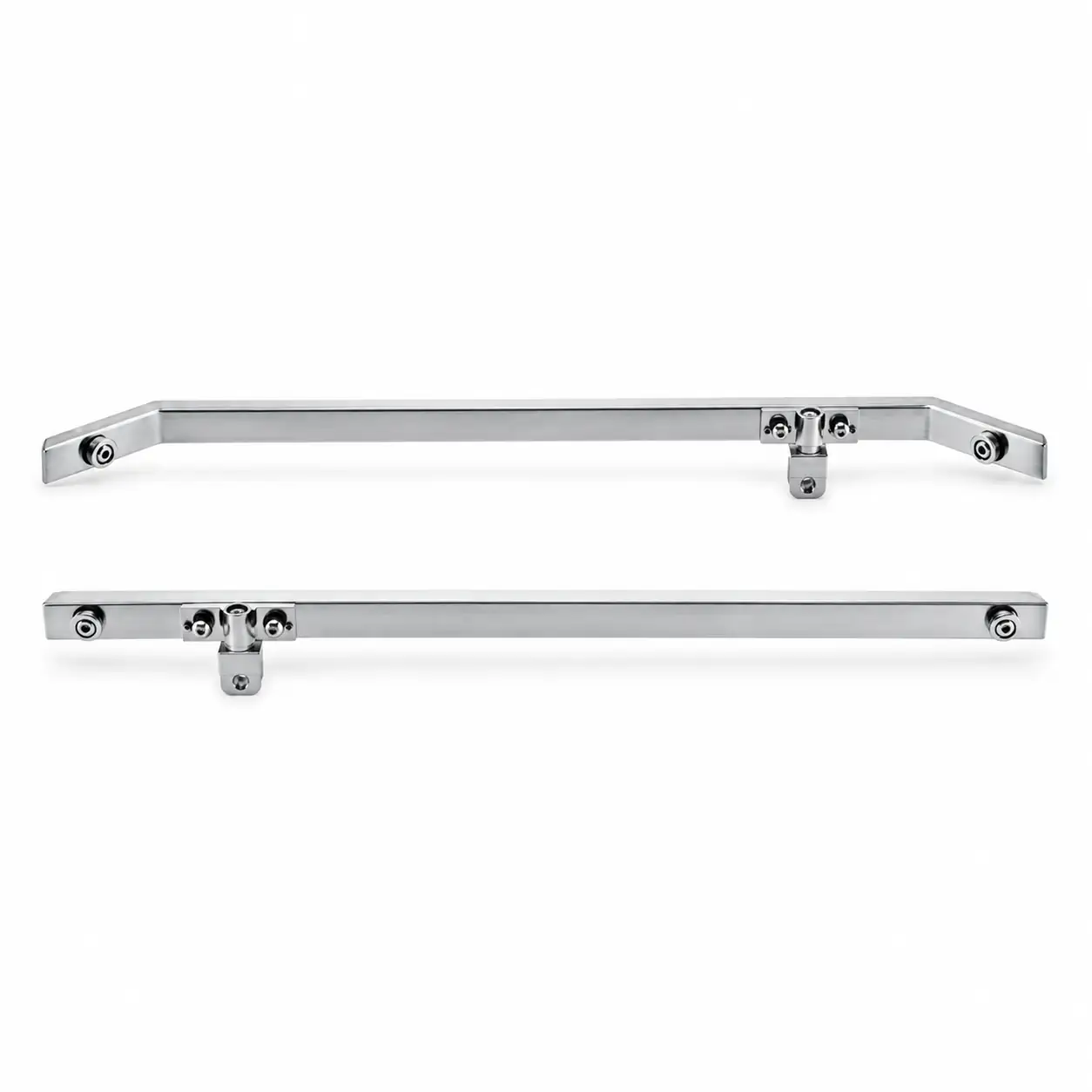

The G-01 Long Pivot Rail Assembly supports the positioning and connection of pivoting glass-door components in frameless installations. Its extended-reach design helps create a clean and coordinated hardware layout.
Product and Selection Information
| Model / SKU | G-01 |
|---|---|
| Fitting type | Long Pivot Rail Assembly |
| Application | Compatible glass-door assemblies; confirm the project mounting and connection layout. |
| Glass thickness and preparation | Request the drawing to confirm supported thickness, holes or cut-outs, and any inserts or gaskets. |
| Dimensions and connections | Confirm mounting dimensions, connection geometry and clearance against the drawing. |
| Material, finish and included parts | Confirm the available configuration and component list in the quotation. |
Before Ordering
Send the glass thickness, door or panel dimensions, mounting position, project drawing or clear photos, finish and quantity. For replacements, include measurements of the existing fitting and its mating components. Confirm glass preparation before fabrication.
G-01 Buyer FAQs
What is the G-01 used for?
G-01 Long Pivot Rail Assembly is a component for compatible glass-door hardware assemblies. Check its position and mating connections against the project drawing.
What length and end connections should I confirm?
Request the overall rail length, mounting positions, end connection geometry and component list. Match these to the complete door assembly drawing before ordering.
Which glass thickness and preparation are required?
The supported thickness and glass preparation are not published on this page. Request the mounting drawing and confirm any holes, cut-outs, inserts or gaskets before fabrication.
Can G-01 replace an existing fitting?
Compare the mounting dimensions, connection geometry, glass preparation and mating components. Similar appearance does not establish compatibility; send measurements and clear photos for review.
What information is needed for a quotation?
Provide model G-01, quantity, glass thickness, door or panel dimensions, mounting drawings or photos, required finish, delivery address and postcode. Confirm material and included accessories in the quotation.
