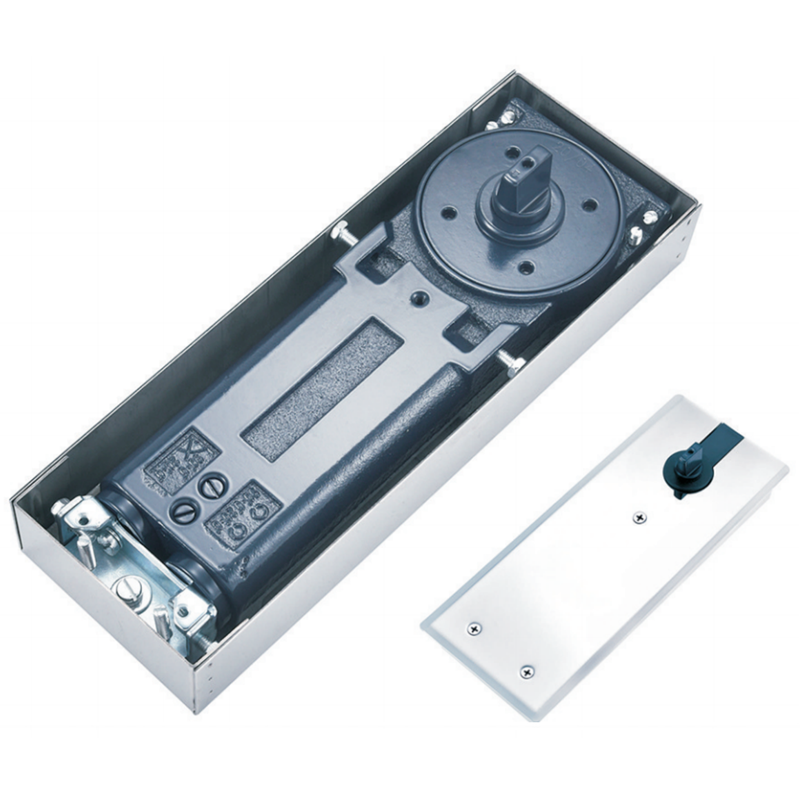

F-84D hydraulic floor spring with uncovered and covered units on a white background

F-84D / BTS-84D Hydraulic Floor Spring

Brand:
THETOP

F-84D / BTS-84D double-cylinder hydraulic floor spring for doors up to 1300 mm wide and 150 kg. Contact THETOP with door dimensions, weight and quantity for configuration and quotation.

Category:
Request Product Materials

Model:F-84D/BTS-84D

Replaceable Spindle head :NO

Applicable door width:1300mm

Suitable door weight:150Kg

  • 90 hold on,max opening at 130° ,non-hold/doubte hold on are availableifrequested.
  • Left and right,forward and backward,up and down can be adjusted 6mm.
  • Two closingspeed valves,for 90°-20° and 20°-0°.
  • passed testof 500,000cycle
