F-8300 Hydraulic Floor Spring
F-8300 single-cylinder hydraulic floor spring for doors up to 1000 mm wide and 100 kg. Fixed spindle head. Contact THETOP with door dimensions, weight and quantity for configuration and quotation.
F-8300 Hydraulic Floor Spring

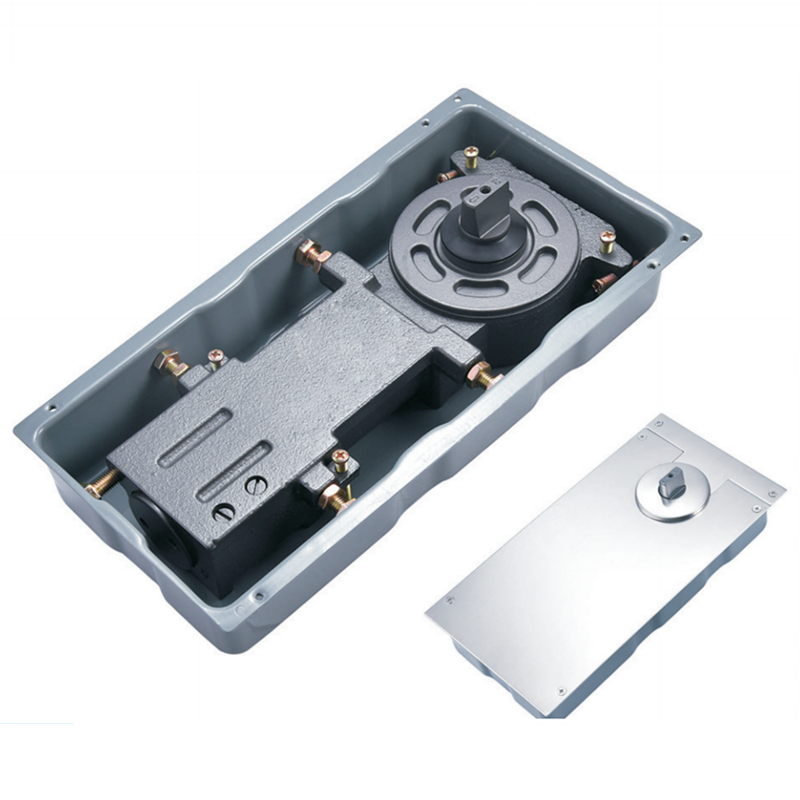

The F-8300 is a single-cylinder hydraulic floor spring with a fixed spindle head. The listed application limits are a door width of up to 1000 mm and a door weight of up to 100 kg. Confirm both measurements and the fitting arrangement before ordering.
Technical Specifications
| Item | Listed specification |
|---|---|
| Model | F-8300 |
| Mechanism | Single-cylinder hydraulic floor spring |
| Spindle | Fixed spindle head |
| Maximum door width | 1000 mm |
| Maximum door weight | 100 kg |
| Maximum opening angle | 130° |
| Hold-open | 90°; non-hold-open and double hold-open options available on request |
| Installation adjustment | 6 mm in left/right, forward/backward and up/down directions |
| Closing-speed adjustment | Two valves: 90°–20° and 20°–0° |
| Listed cycle test | 500,000 cycles; request the applicable test documentation for your project |
Selection and Installation Checks
Send the door width, height, weight, material, required opening direction and fitting drawings or photos. For a replacement, include the existing floor-spring body dimensions, floor recess and spindle connection. Confirm the supplied accessories, finish and hold-open configuration with THETOP before placing an order.
Buyer FAQs
What door size can the F-8300 support?
The listed limits are 1000 mm door width and 100 kg door weight. Both limits must be considered together. Send your door details so the configuration can be checked.
Can I adjust the closing speed?
Yes. Two adjustment valves control the 90°–20° and 20°–0° closing ranges separately. Follow the installation instructions when making adjustments.
Does this floor spring hold the door open?
The listed hold-open position is 90°. Non-hold-open and double hold-open options are available on request. Specify the required version when requesting a quotation.
Can it replace an existing floor spring?
Compatibility cannot be confirmed from the model name alone. Send the existing unit’s dimensions, spindle connection and fitting photos for comparison.
What is required for a quotation?
Please provide the door dimensions and weight, hold-open requirement, quantity, project country, delivery address and postal code. These details help us check the configuration and calculate shipping.
