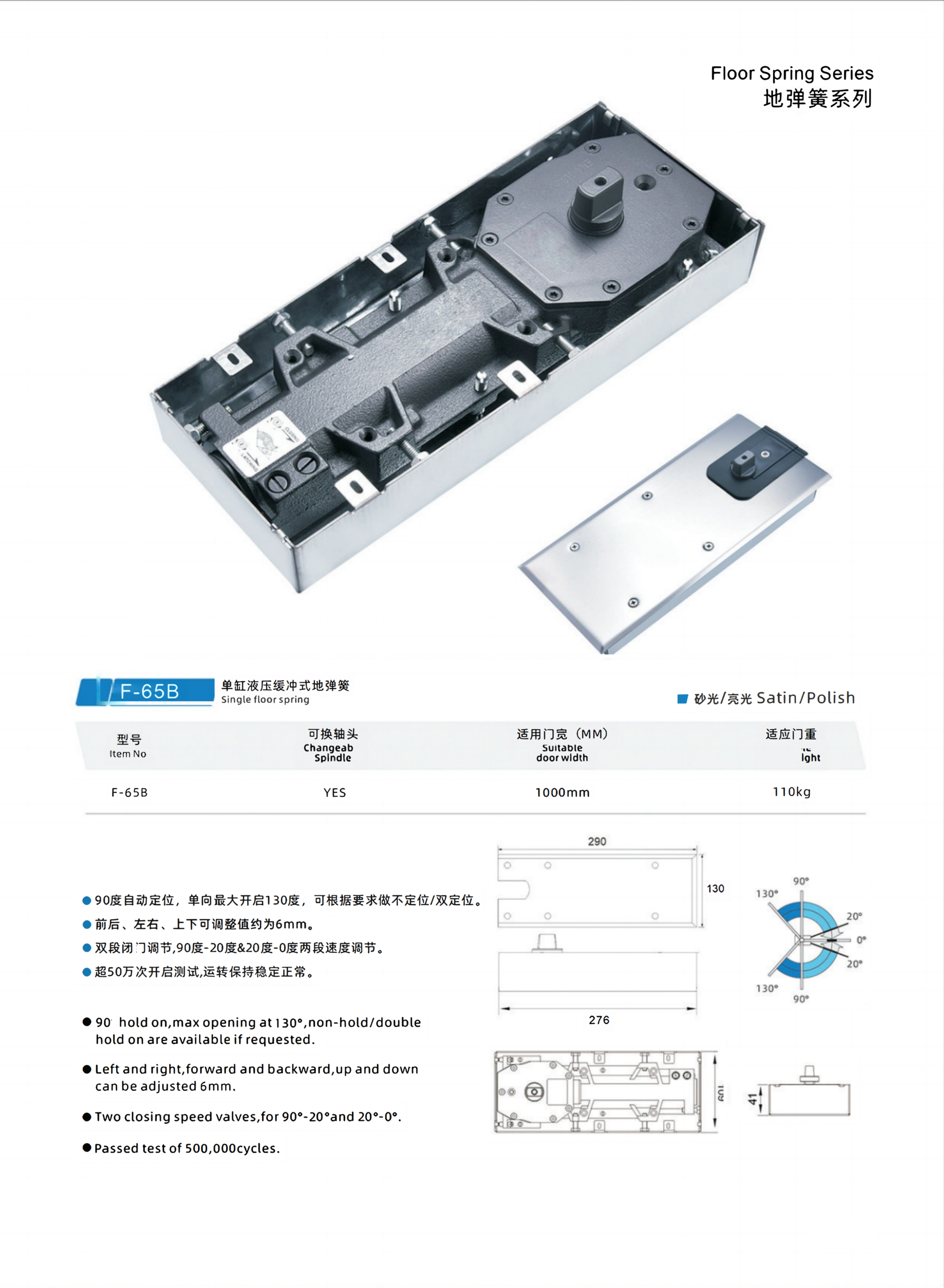

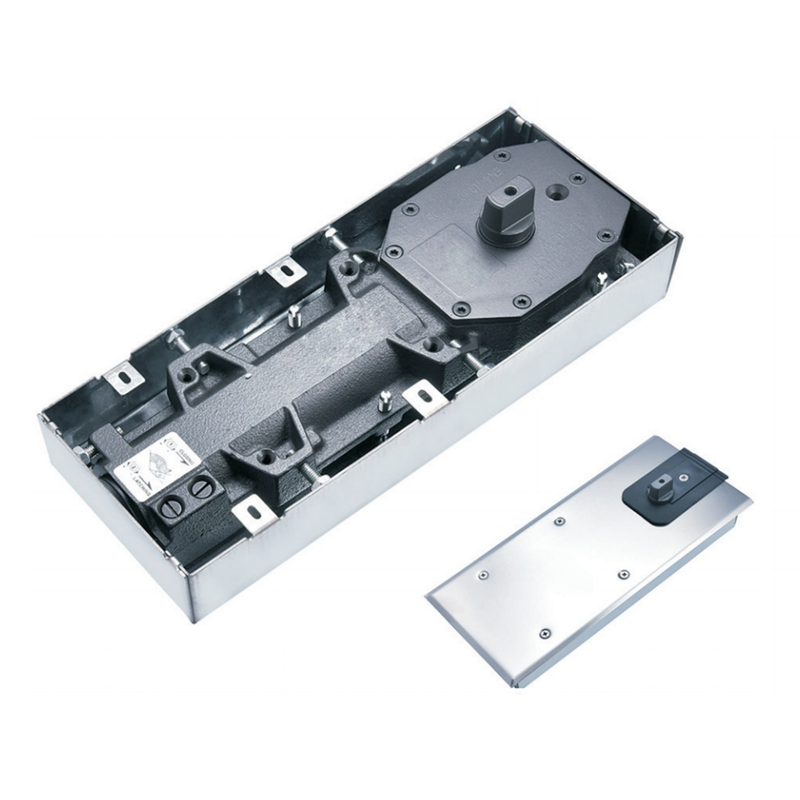

F-65B hydraulic floor spring with uncovered and covered units on a white background

F-65B / BTS-65B Hydraulic Floor Spring

Brand:
THETOP

F-65B / BTS-65B hydraulic floor spring with replaceable spindle head, suitable for doors up to 1000 mm wide and 110 kg. Contact THETOP for configuration and quotation.

Category:
Request Product Materials

Model:F-65B

Replaceable Spindle head :YES

Applicable door width:1000mm

Suitable door weight:110Kg

  • 90·hold on,max opening at 130° ,non-hold/double hold on are availableifrequested.
  • Left and right,forward and backward,up and down can be adjusted 6mm.
  • Two closing speed valves,for 90°-20° and 20°-0° .
  • passed testof 500,000cycles.
