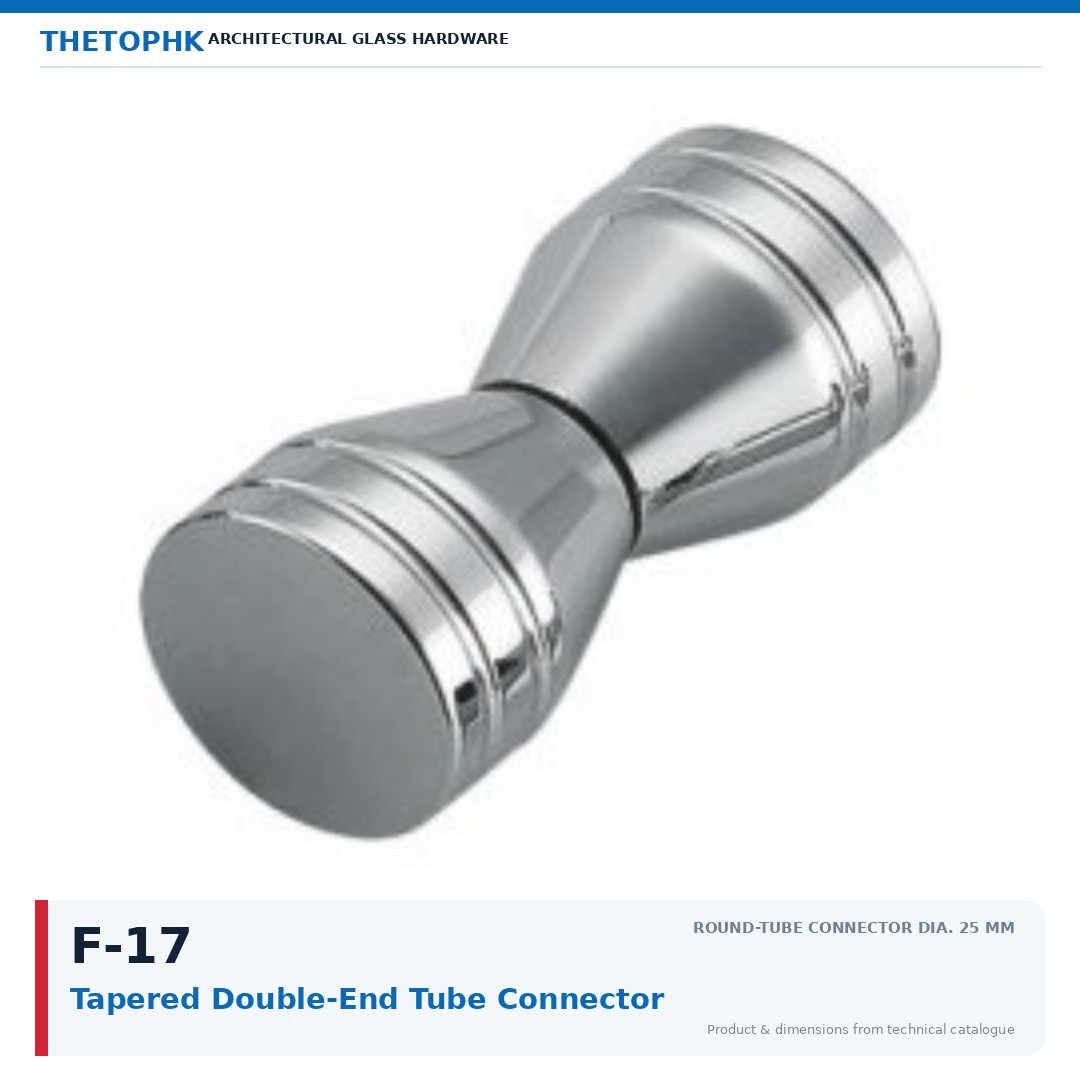

F-17 Tapered Double-End Tube Connector
F-17 Tapered Double-End Tube Connector is a tapered double-end connector for compatible Ø25 mm round-tube support systems used with shower screens and fixed glass panels. Confirm tube diameter, mounting arrangement, glass thickness where applicable, finish and quantity before ordering.
F-17 Tapered Double-End Tube Connector

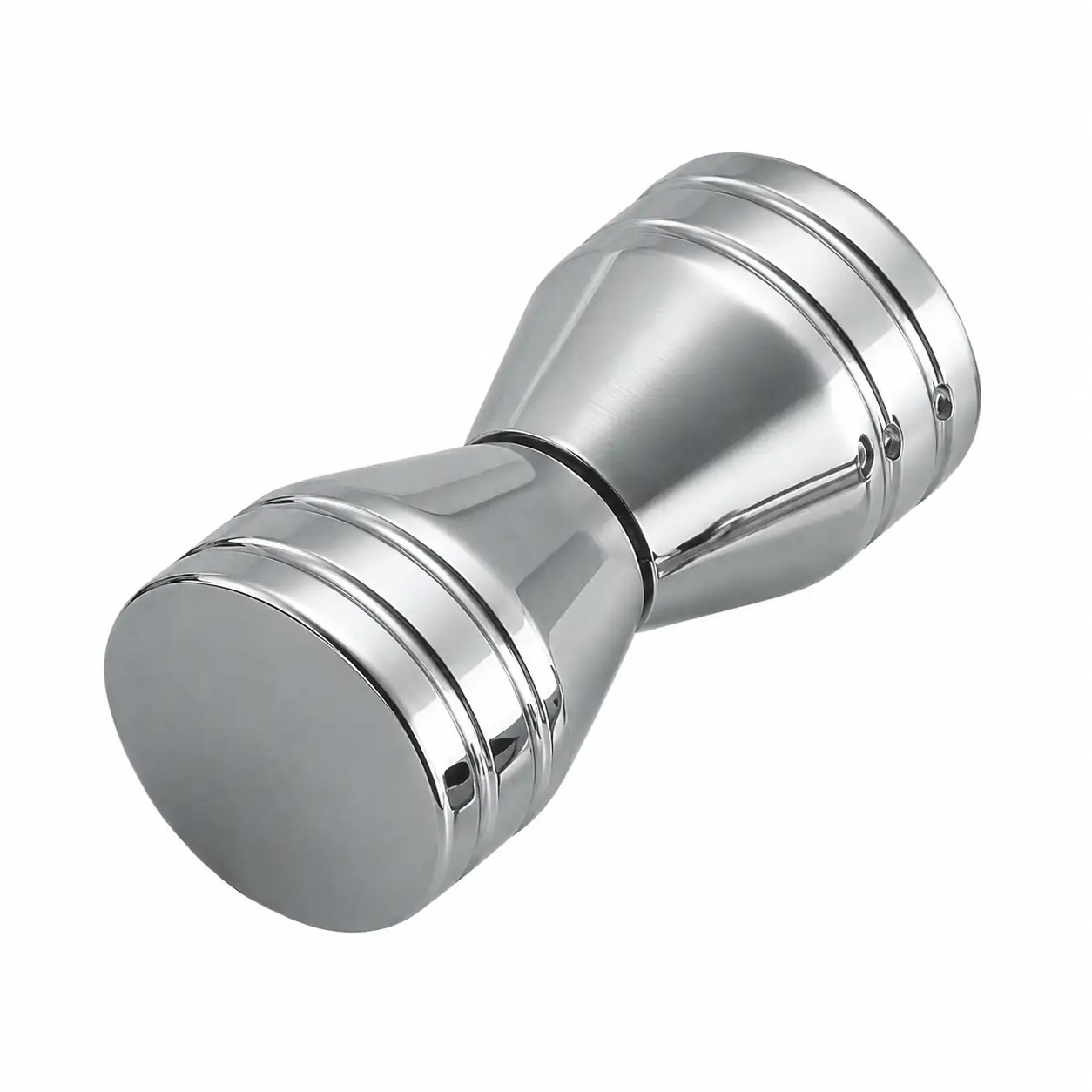

The F-17 Tapered Double-End Tube Connector connects compatible 25 mm round tubes within shower-screen and fixed-glass support systems. Its application-focused design helps create a clean and coordinated hardware layout.
Project selection
Please confirm the dimensions, finish and compatibility of the supplied configuration before ordering.
Ordering & project FAQs ↗ · Product buying guides ↗
Buyer FAQs
How do I match both ends of the F-17 connector?
Send the dimensions of both tube ends and the joint position. Confirm each mating diameter, insertion depth and retention method against the F-17 drawing before cutting or ordering tubes.
Is any nominal 25 mm tube compatible?
Confirm the actual tube outside diameter, wall thickness, tolerances and joint details against the supplier drawing. A nominal 25 mm designation alone does not establish interchangeable fit.
Which parts are included in the supply?
Request an itemized list of connectors, tubes, caps, gaskets, screws and mounting fittings. Confirm which parts are supplied with this model and which must be ordered separately.
Does the connector model establish the assembly load rating?
No. Provide tube spans, fixing surfaces, panel dimensions where applicable and the complete connection layout so the full arrangement can be checked. Confirm the assembly rating and installation requirements with the supplier.
What is needed for a quotation?
Send F-17 Tapered Double-End Tube Connector, quantity, tube dimensions, connection drawing, glass specification where applicable, required finish and delivery address with postcode. Include photographs when replacing existing hardware.
