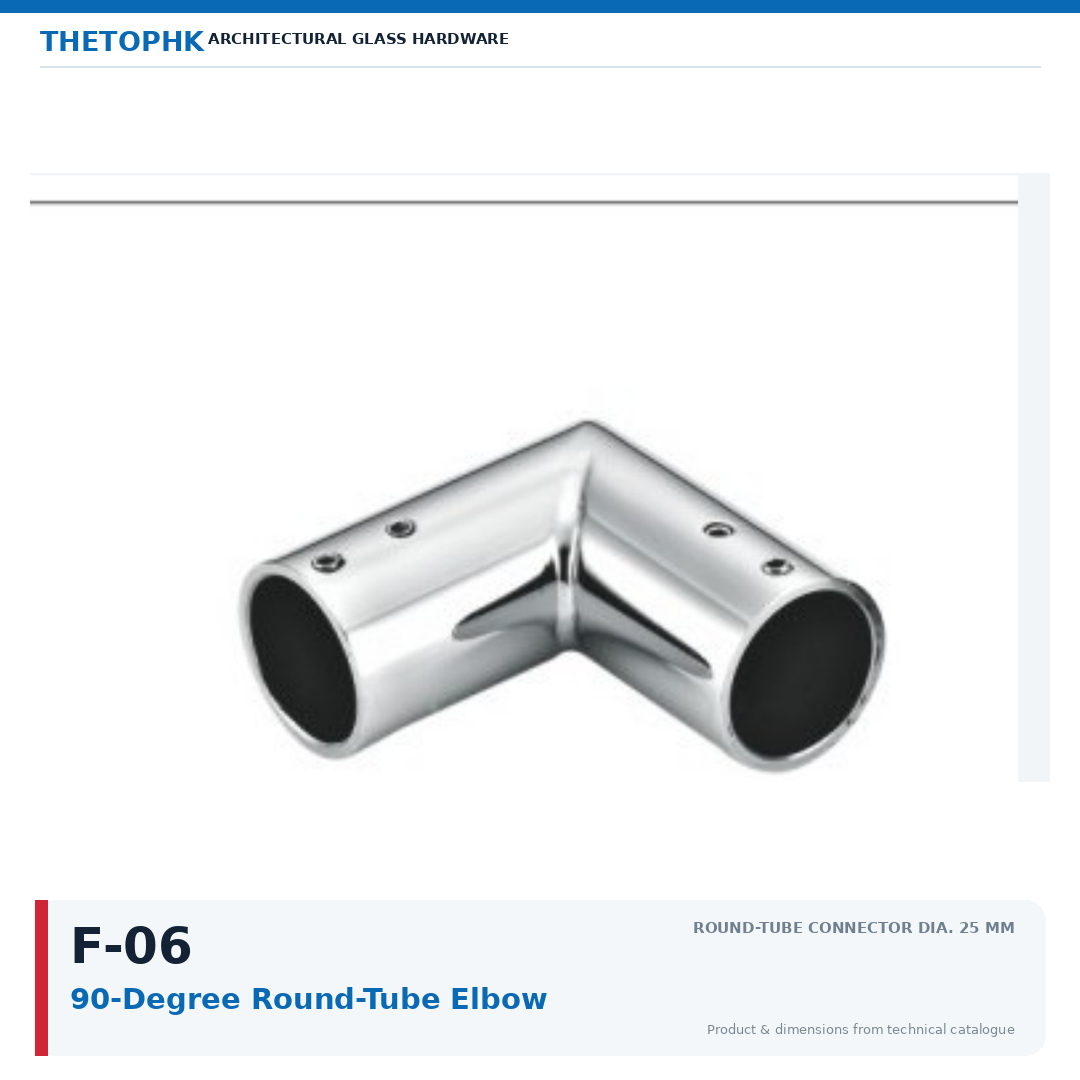

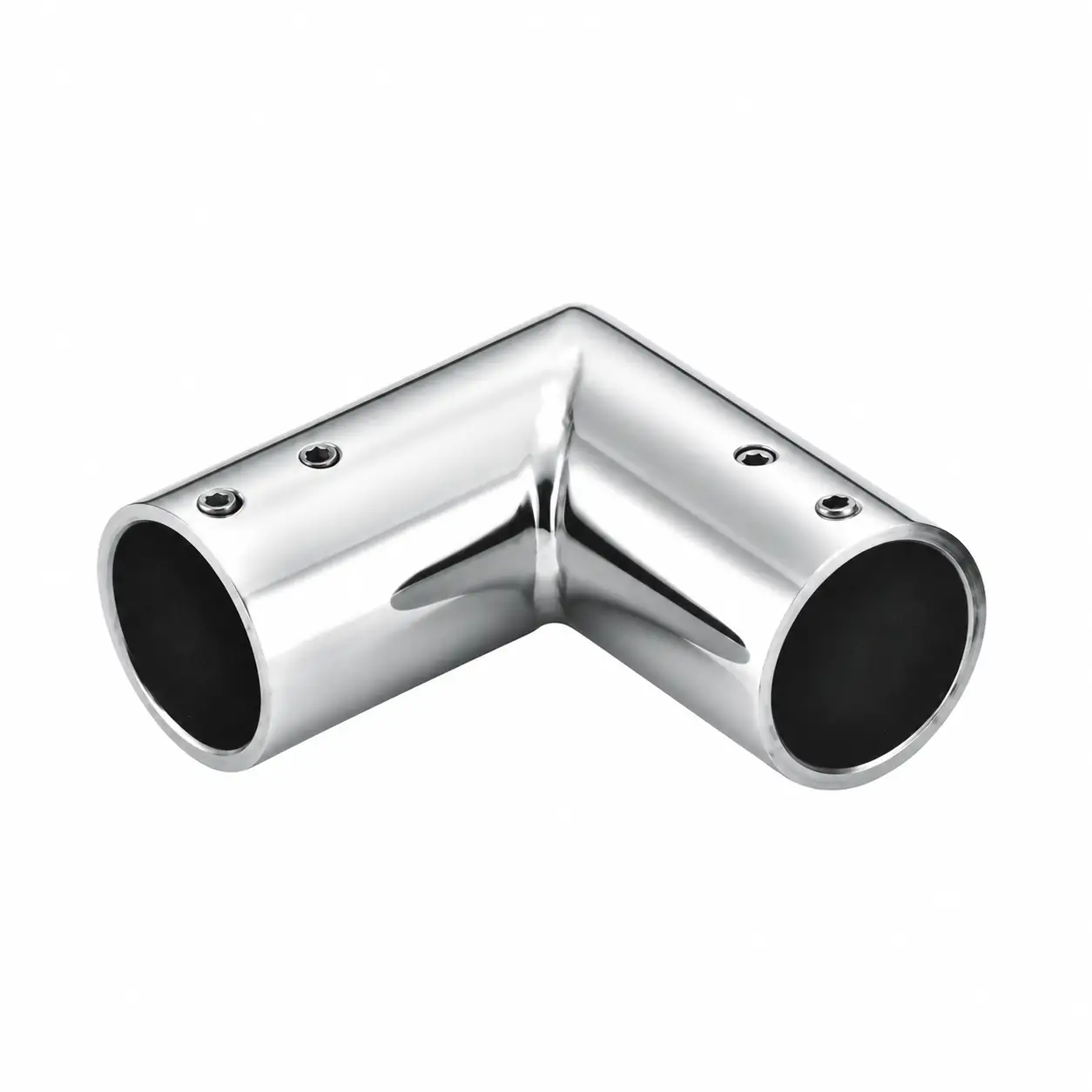

F-06 90-Degree Round-Tube Elbow
F-06 90-Degree Round-Tube Elbow is a 90° elbow for compatible Ø25 mm round-tube support systems used with shower screens and fixed glass panels. Confirm tube diameter, mounting arrangement, glass thickness where applicable, finish and quantity before ordering.
F-06 90-Degree Round-Tube Elbow
The F-06 90-Degree Round-Tube Elbow connects compatible 25 mm round tubes within shower-screen and fixed-glass support systems. Its rounded-profile design helps create a clean and coordinated hardware layout.
Project selection
Please confirm the dimensions, finish and compatibility of the supplied configuration before ordering.
Ordering & project FAQs ↗ · Product buying guides ↗
Buyer FAQs
How do I confirm the F-06 90-degree connection?
Provide a drawing showing both tube directions and the corner clearance. Confirm the connection angle, insertion depths and end-fitting allowances against the F-06 drawing before cutting tubes.
Is any nominal 25 mm tube compatible?
Confirm the actual tube outside diameter, wall thickness, tolerances and joint details against the supplier drawing. A nominal 25 mm designation alone does not establish interchangeable fit.
Which parts are included in the supply?
Request an itemized list of connectors, tubes, caps, gaskets, screws and mounting fittings. Confirm which parts are supplied with this model and which must be ordered separately.
Does the connector model establish the assembly load rating?
No. Provide tube spans, fixing surfaces, panel dimensions where applicable and the complete connection layout so the full arrangement can be checked. Confirm the assembly rating and installation requirements with the supplier.
What is needed for a quotation?
Send F-06 90-Degree Round-Tube Elbow, quantity, tube dimensions, connection drawing, glass specification where applicable, required finish and delivery address with postcode. Include photographs when replacing existing hardware.
