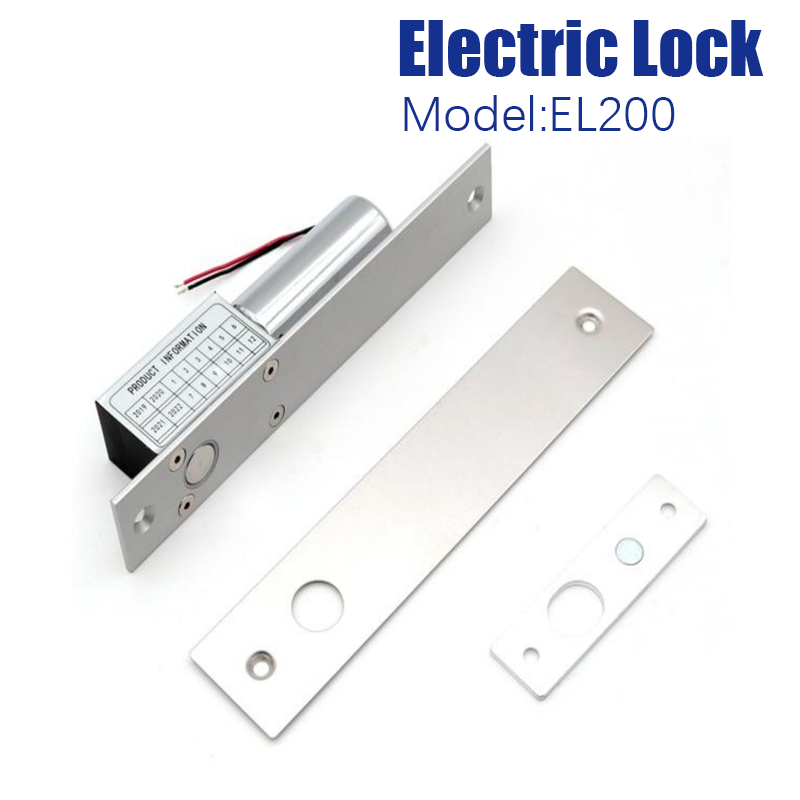

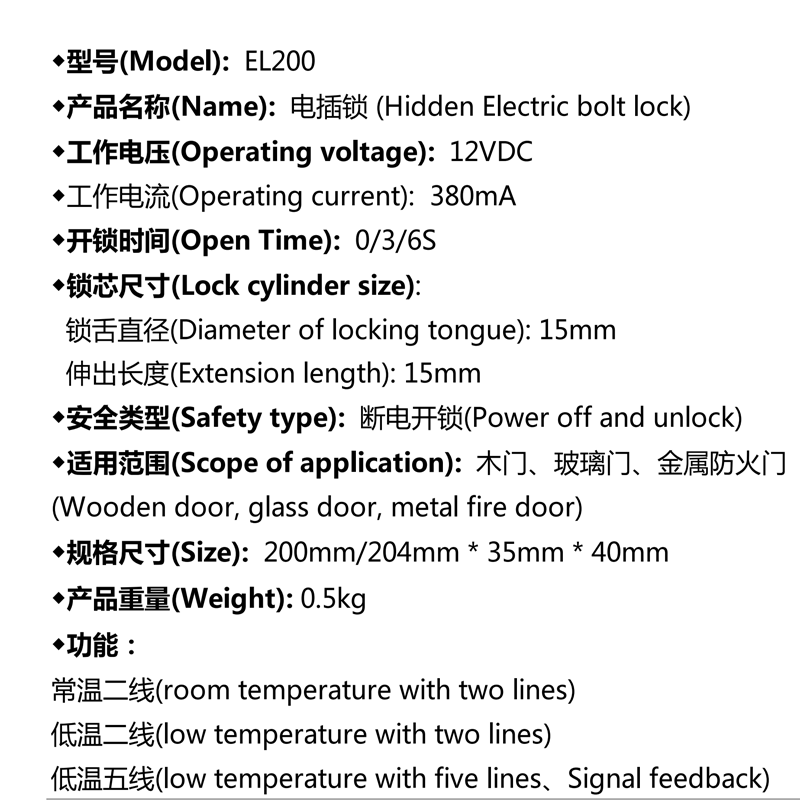

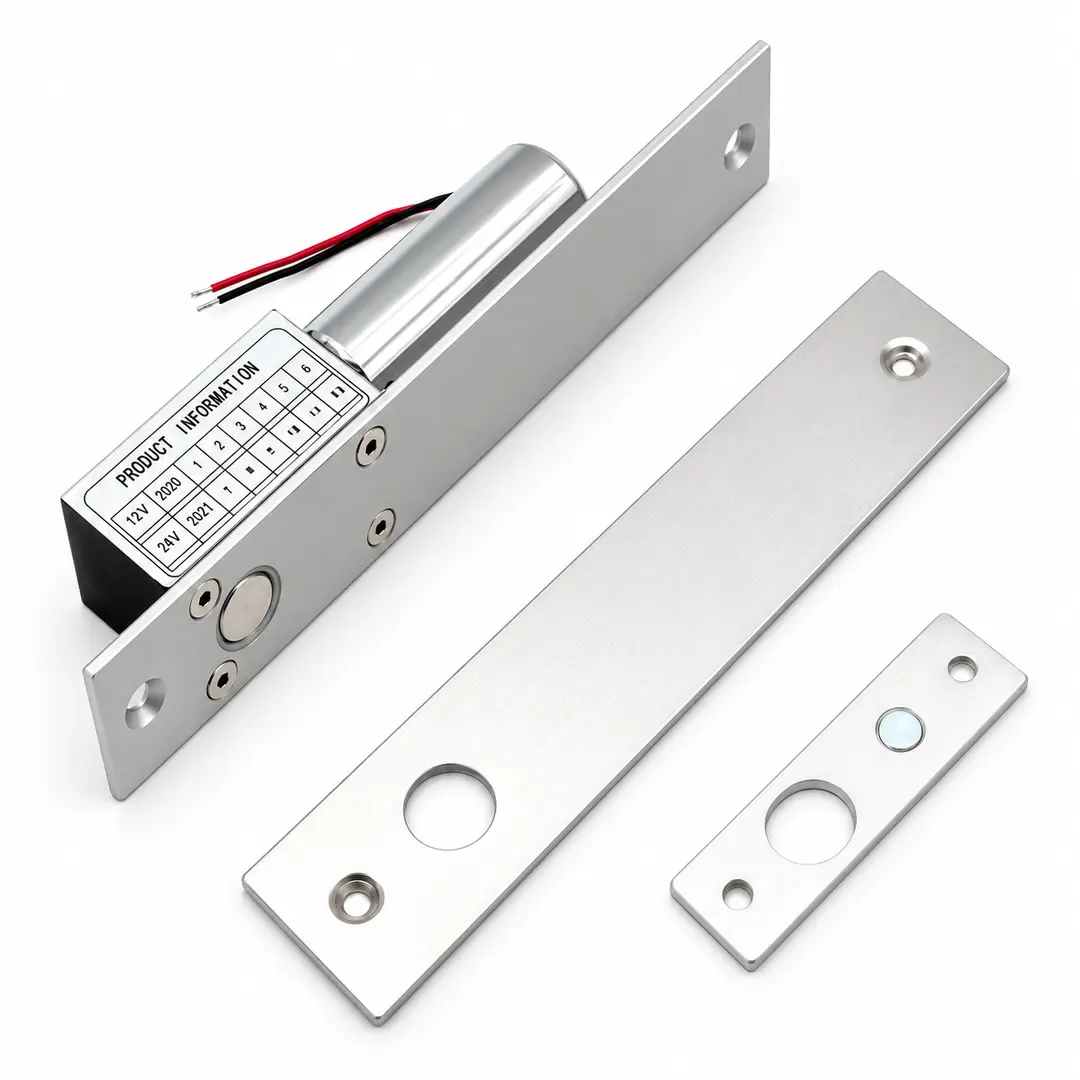

EL200 concealed electric bolt lock for access control applications. Operating voltage: DC 12 V; listed operating current: 380 mA. Fail-safe operation (power off to unlock) with selectable 0 / 3 / 6 second delay. Bolt diameter: 15 mm; extension: 15 mm. Body dimensions: approximately 200/204 × 35 × 40 mm. Suitable for compatible wooden, glass and metal doors. Contact THETOP for installation matching.
