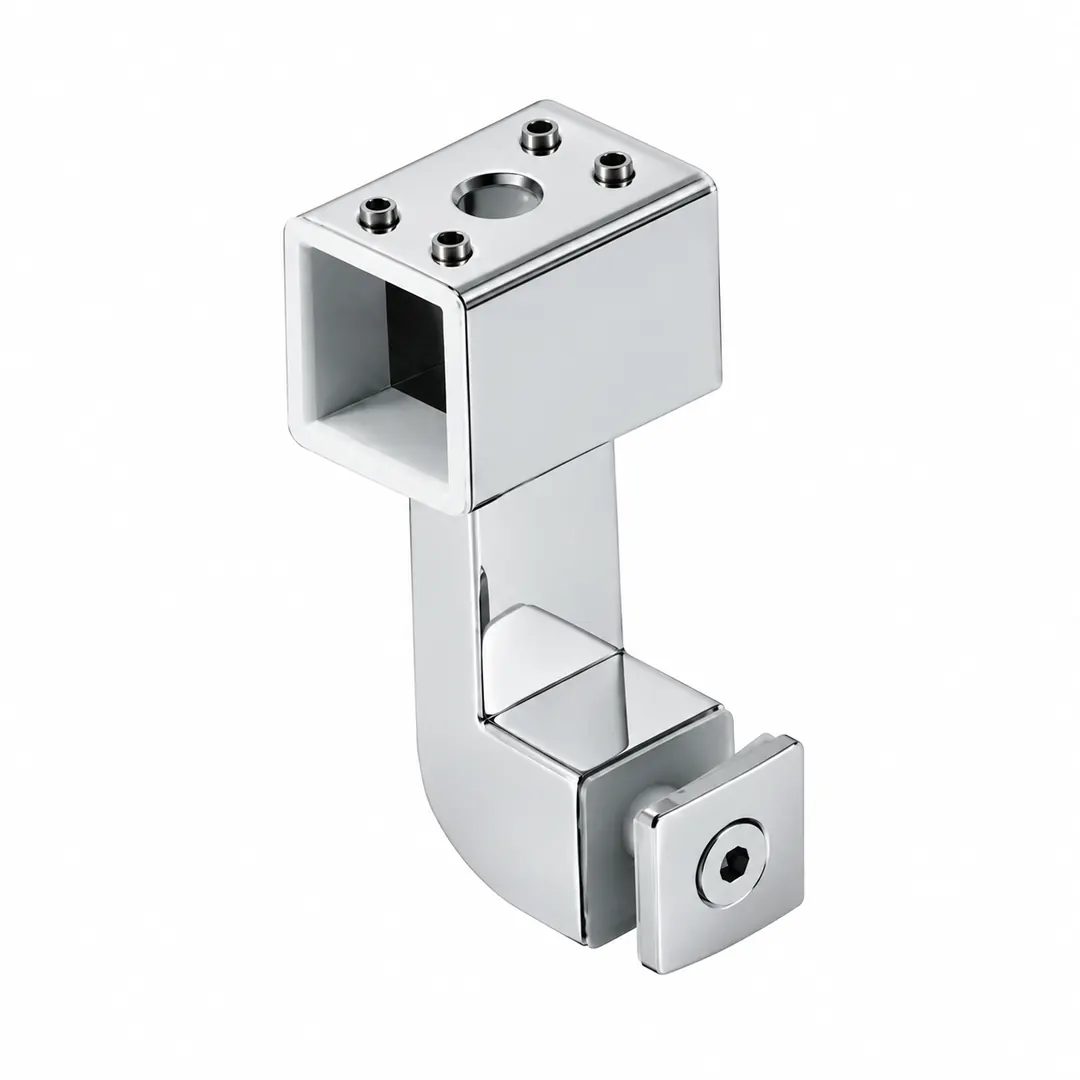

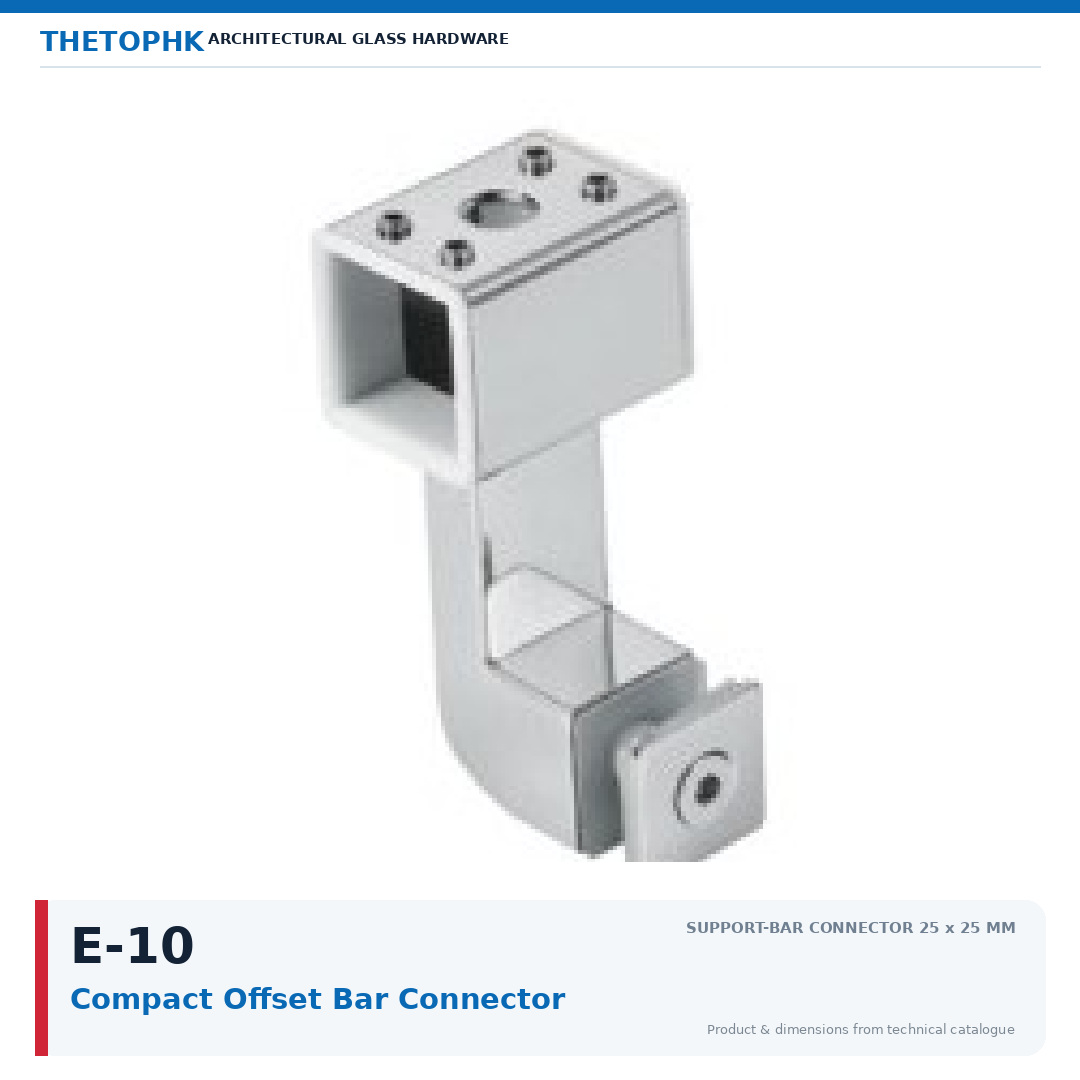

E-10 Compact Offset Bar Connector
E-10 Compact Offset Bar Connector is a compact offset connector for compatible support-bar systems used with fixed glass panels, shower screens and architectural glass installations. Confirm bar/profile dimensions, glass thickness where applicable, mounting arrangement, finish and quantity before ordering.
E-10 Compact Offset Bar Connector
The E-10 Compact Offset Bar Connector connects and supports compatible bars used to stabilize fixed glass panels and shower enclosures. Its compact design helps create a clean and coordinated hardware layout.
Project selection
Please confirm the dimensions, finish and compatibility of the supplied configuration before ordering.
Ordering & project FAQs ↗ · Product buying guides ↗
Buyer FAQs
How do I select the compact E-10 offset?
Provide the clearance between the bar and adjacent glass or surface. Confirm the offset distance, body dimensions and bar insertion size for E-10; compact appearance alone does not confirm fit.
How do I confirm the matching bar and glass dimensions?
Send the actual bar profile, outside dimensions and glass thickness where the fitting contacts glass. Confirm insertion depth, clearances and any holes or cut-outs against the supplier drawing before fabrication.
Which parts are included in the supply?
Request an itemized list of bars, connectors, caps, glass-contact gaskets, screws and mounting fittings. Confirm which parts are supplied with this model and which must be ordered separately.
Can the model name establish the assembly load rating?
No. The model name does not establish a load rating or suitability for every project. Provide panel dimensions, support-bar span, fixing surfaces and the full connection layout so the complete arrangement can be checked.
What is needed for a quotation?
Send E-10 Compact Offset Bar Connector, quantity, bar dimensions, glass specification, connection drawing, required finish and delivery address with postcode. Include photographs when replacing existing hardware.
