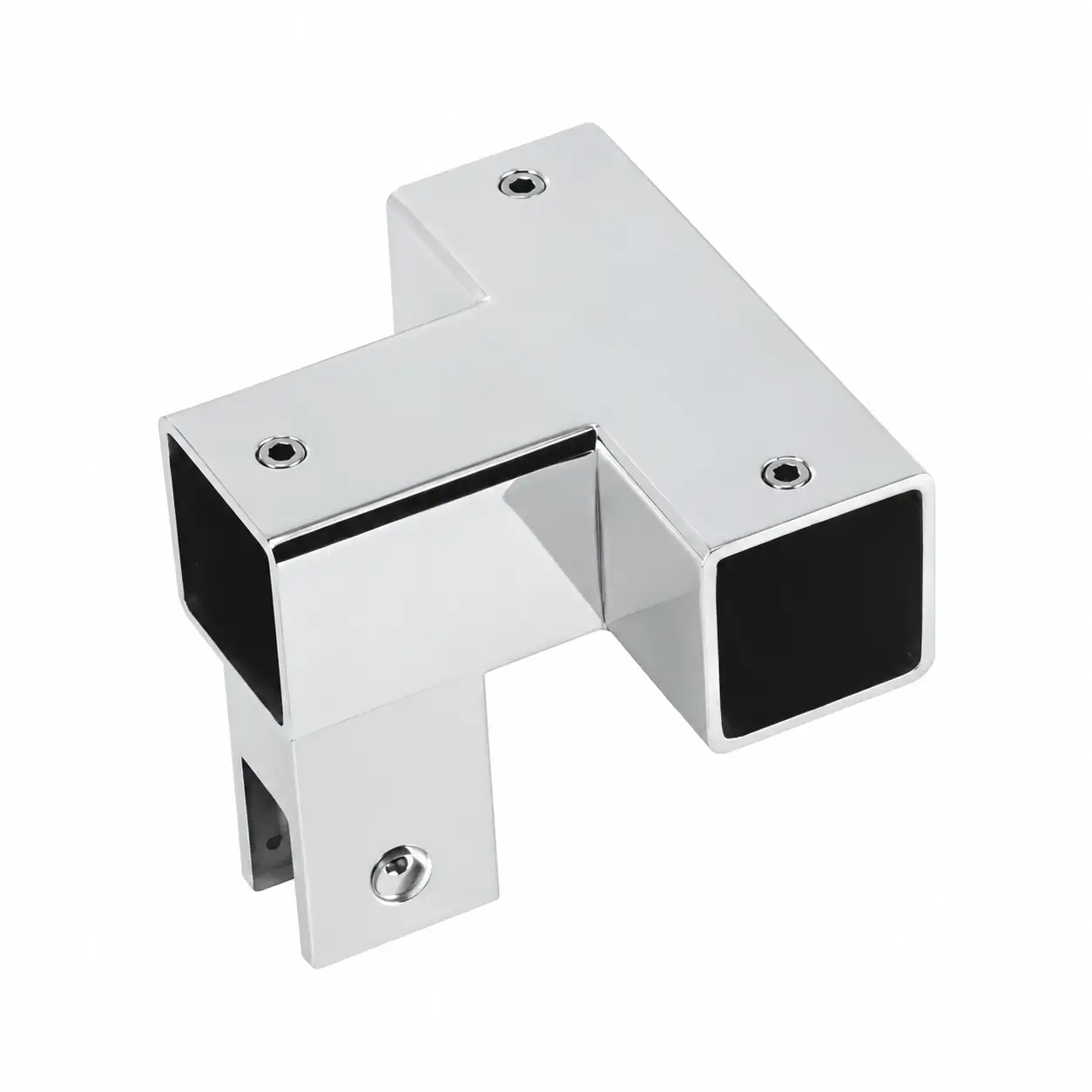

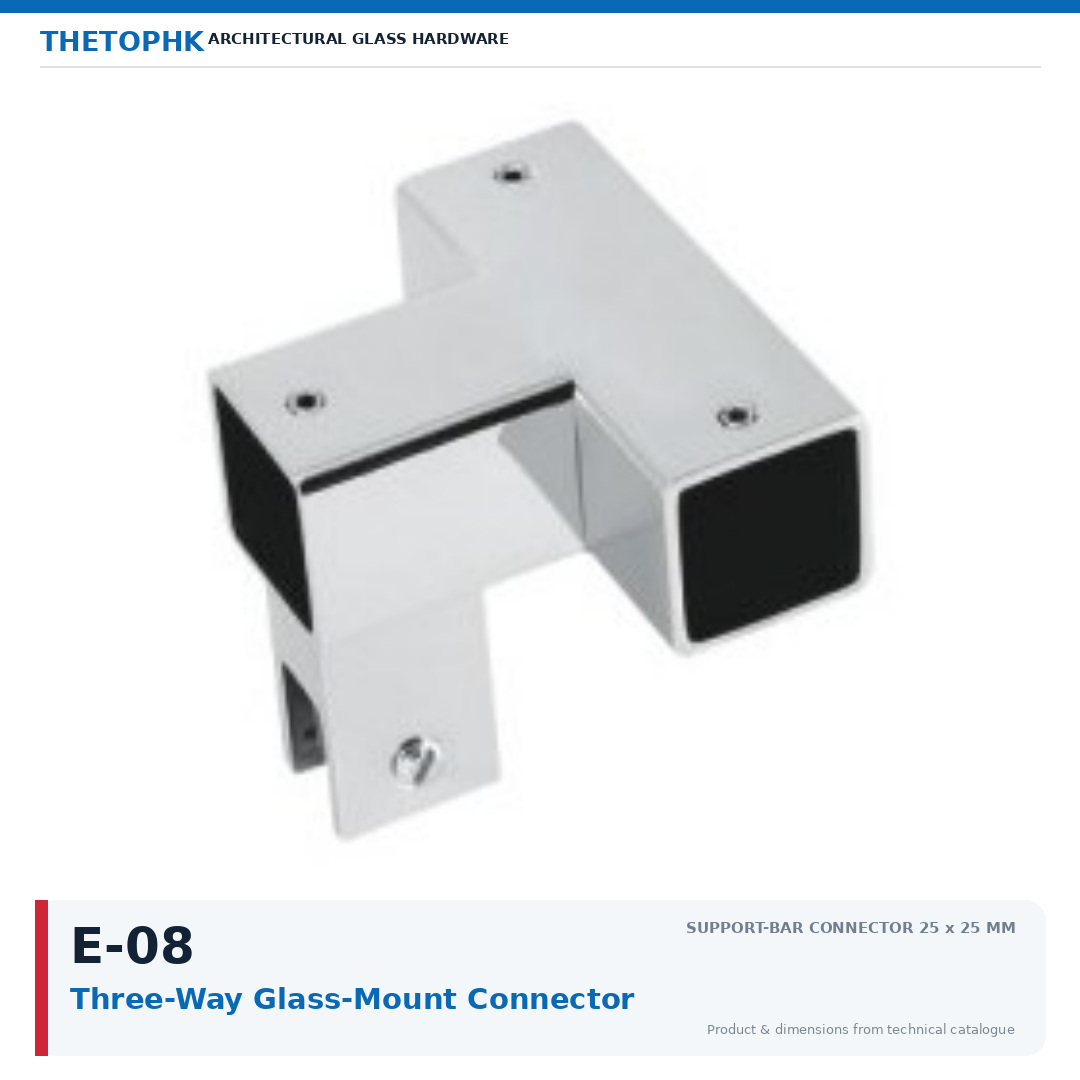

E-08 Three-Way Glass-Mount Connector
E-08 Three-Way Glass-Mount Connector is a three-way glass-mount connector for compatible support-bar systems used with fixed glass panels, shower screens and architectural glass installations. Confirm bar/profile dimensions, glass thickness where applicable, mounting arrangement, finish and quantity before ordering.
E-08 Three-Way Glass-Mount Connector
The E-08 Three-Way Glass-Mount Connector joins compatible components in frameless glass-door, partition, and shower-enclosure installations. Its application-focused design helps create a clean and coordinated hardware layout.
Project selection
Please confirm the dimensions, finish and compatibility of the supplied configuration before ordering.
Ordering & project FAQs ↗ · Product buying guides ↗
Buyer FAQs
How do I specify the three-way E-08 arrangement?
Send a drawing showing all three connection directions, bar profiles and glass position. Confirm which connections attach to glass and which accept a bar, with the exact fitting dimensions for E-08.
How do I confirm the matching bar and glass dimensions?
Send the actual bar profile, outside dimensions and glass thickness where the fitting contacts glass. Confirm insertion depth, clearances and any holes or cut-outs against the supplier drawing before fabrication.
Which parts are included in the supply?
Request an itemized list of bars, connectors, caps, glass-contact gaskets, screws and mounting fittings. Confirm which parts are supplied with this model and which must be ordered separately.
Can the model name establish the assembly load rating?
No. The model name does not establish a load rating or suitability for every project. Provide panel dimensions, support-bar span, fixing surfaces and the full connection layout so the complete arrangement can be checked.
What is needed for a quotation?
Send E-08 Three-Way Glass-Mount Connector, quantity, bar dimensions, glass specification, connection drawing, required finish and delivery address with postcode. Include photographs when replacing existing hardware.
