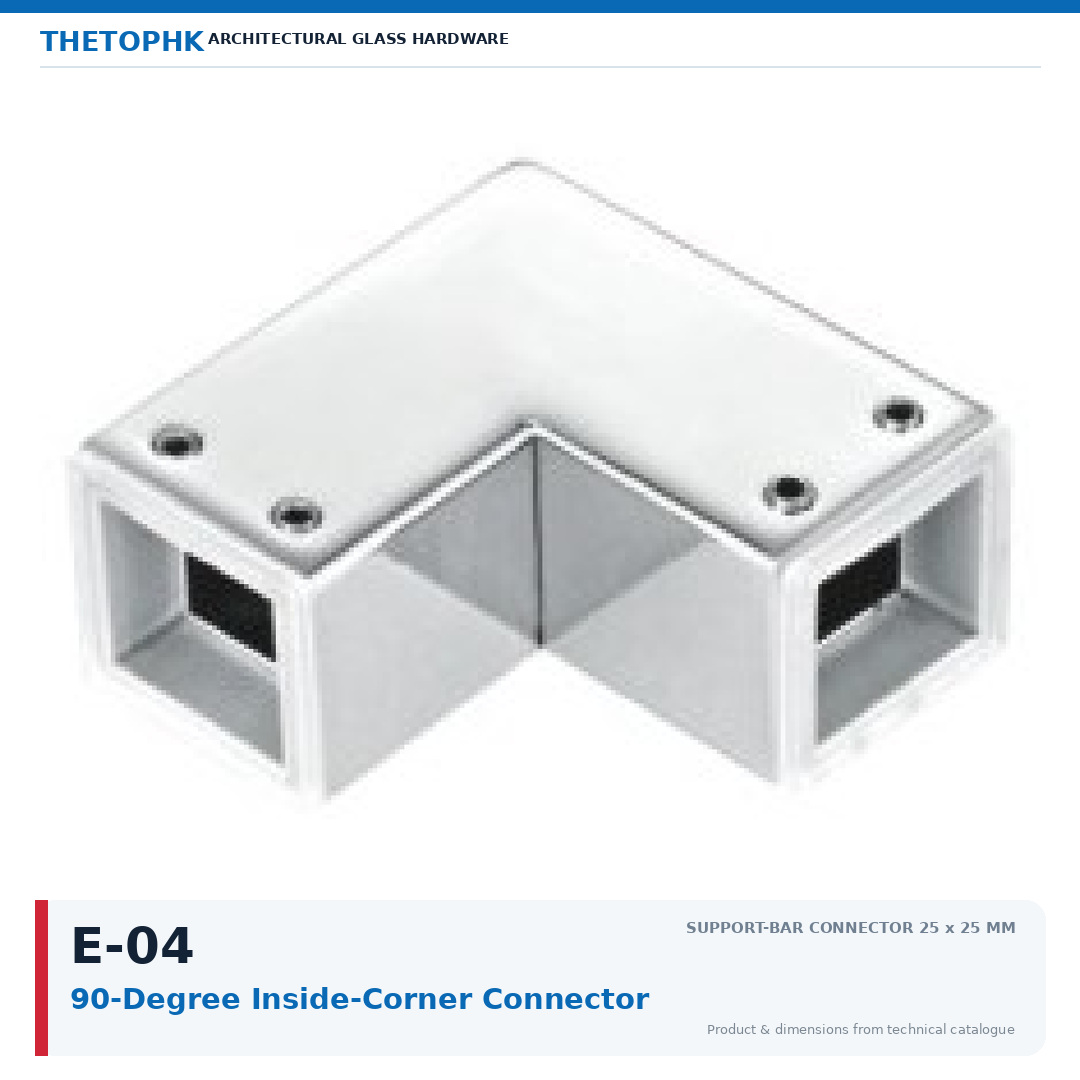

E-04 90-Degree Inside-Corner Connector
E-04 90-Degree Inside-Corner Connector is a 90° inside-corner connector for compatible support-bar systems used with fixed glass panels, shower screens and architectural glass installations. Confirm bar/profile dimensions, glass thickness where applicable, mounting arrangement, finish and quantity before ordering.
E-04 90-Degree Inside-Corner Connector

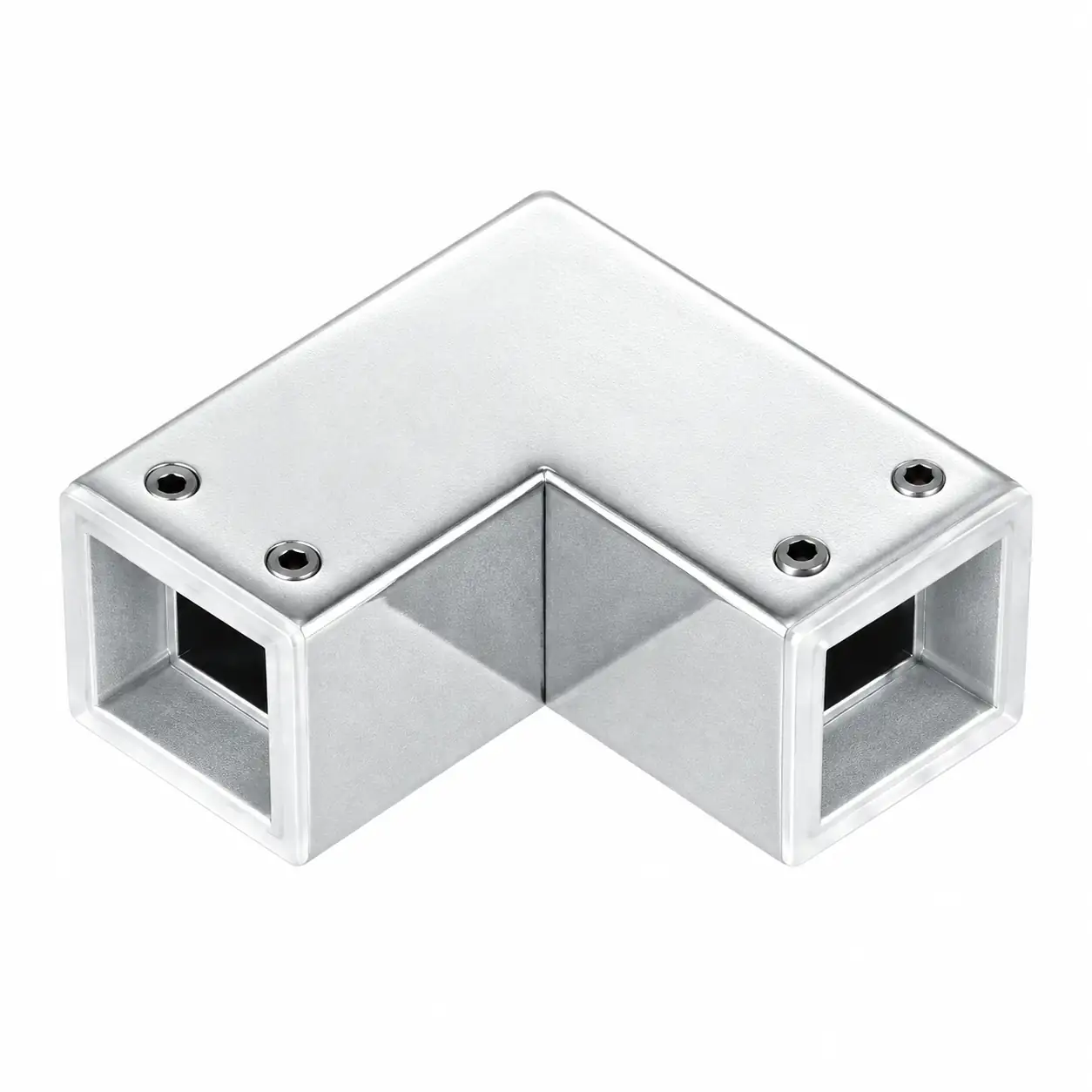

The E-04 90-Degree Inside-Corner Connector forms a clean corner connection between compatible glass-door or fixed-panel components. Its angle-specific design helps create a clean and coordinated hardware layout.
Project selection
Please confirm the dimensions, finish and compatibility of the supplied configuration before ordering.
Ordering & project FAQs ↗ · Product buying guides ↗
Buyer FAQs
How do I check the E-04 inside corner?
Provide a plan showing the inside corner, 90-degree bar directions and surrounding clearance. Confirm the bar profile, insertion depth and exact supplied E-04 dimensions before cutting the bars.
How do I confirm the matching bar and glass dimensions?
Send the actual bar profile, outside dimensions and glass thickness where the fitting contacts glass. Confirm insertion depth, clearances and any holes or cut-outs against the supplier drawing before fabrication.
Which parts are included in the supply?
Request an itemized list of bars, connectors, caps, glass-contact gaskets, screws and mounting fittings. Confirm which parts are supplied with this model and which must be ordered separately.
Can the model name establish the assembly load rating?
No. The model name does not establish a load rating or suitability for every project. Provide panel dimensions, support-bar span, fixing surfaces and the full connection layout so the complete arrangement can be checked.
What is needed for a quotation?
Send E-04 90-Degree Inside-Corner Connector, quantity, bar dimensions, glass specification, connection drawing, required finish and delivery address with postcode. Include photographs when replacing existing hardware.
