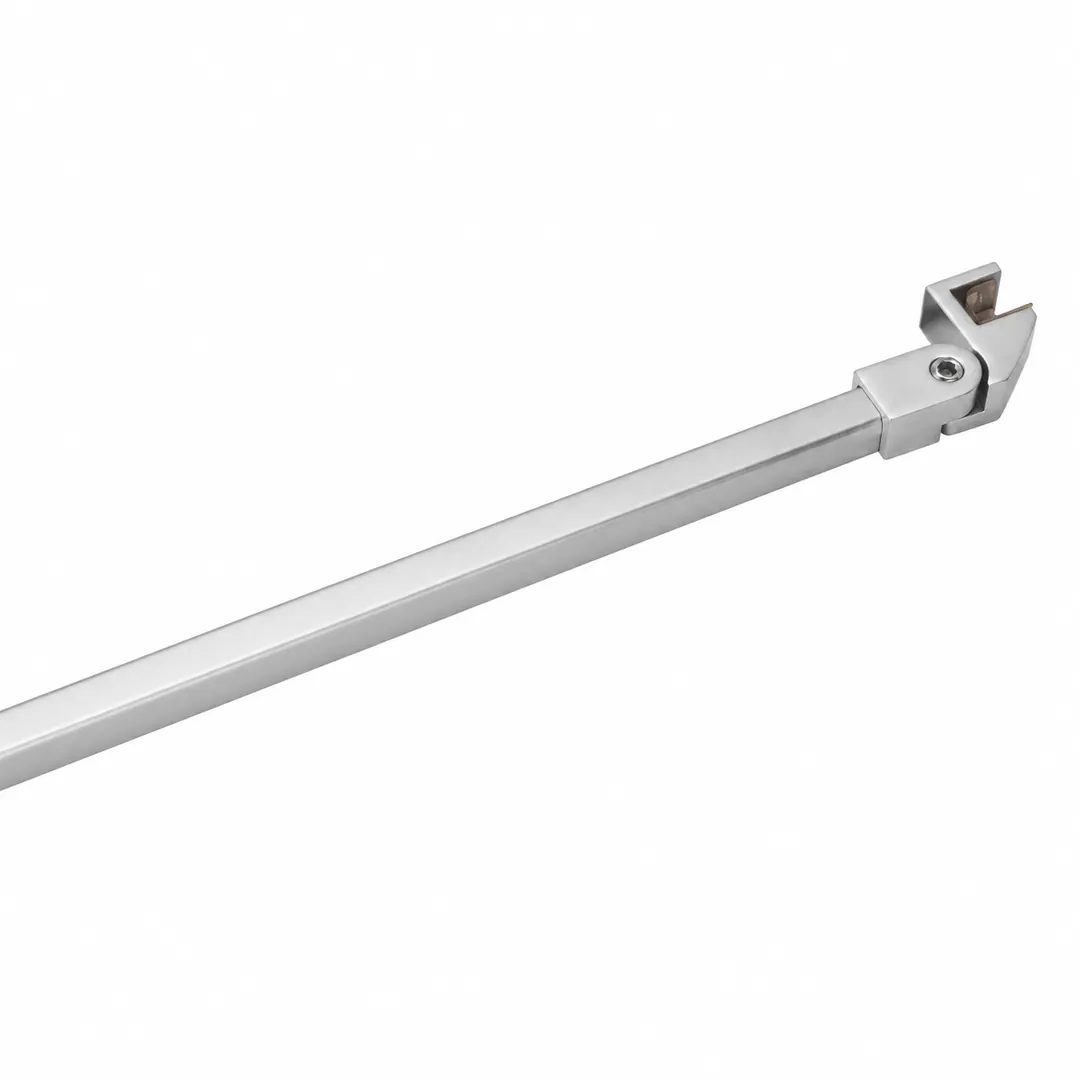

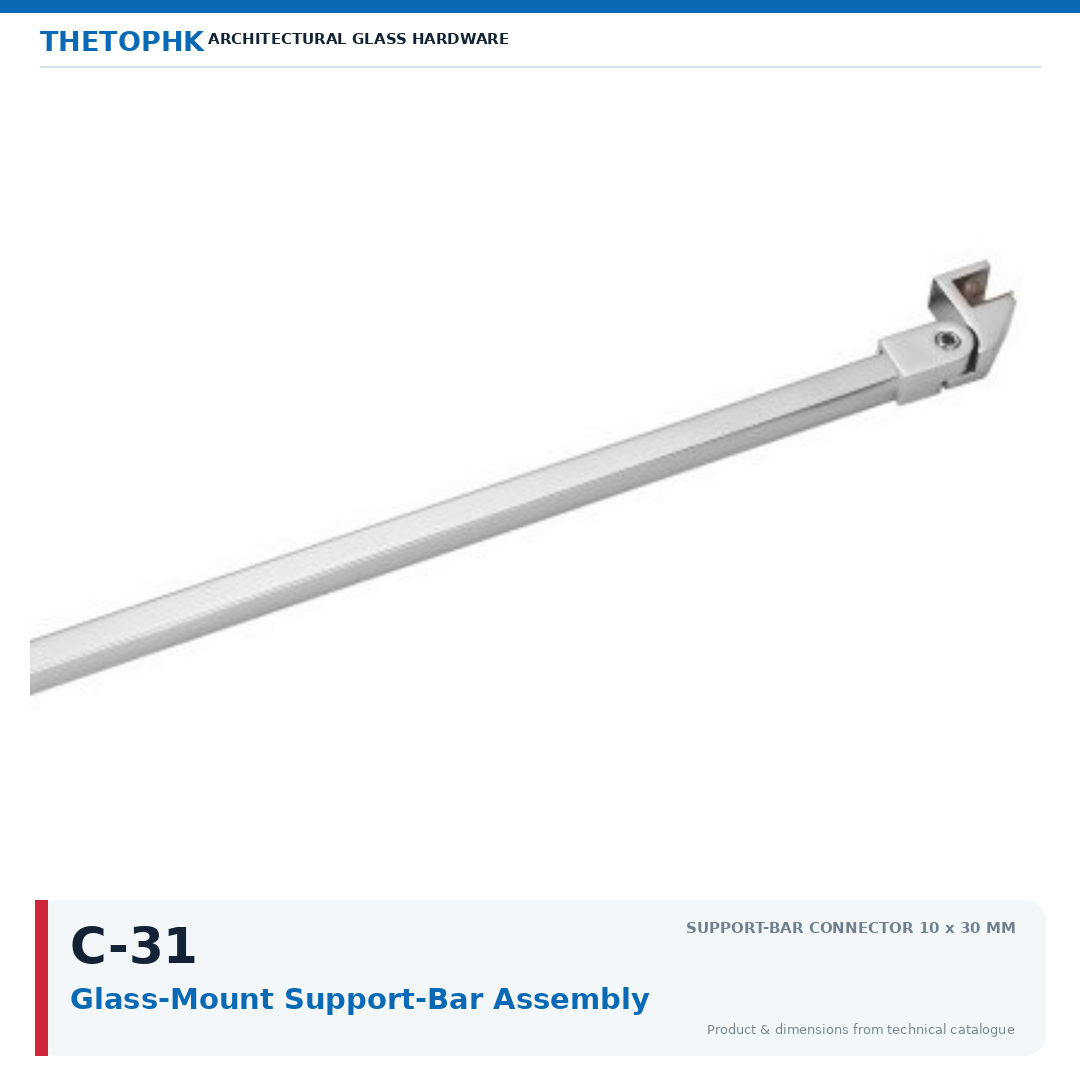

C-31 Glass-Mount Support-Bar Assembly
C-31 Glass-Mount Support-Bar Assembly is a glass-mount support-bar assembly for stabilizing fixed glass panels, shower screens and compatible architectural glass installations. Confirm bar/profile dimensions, glass thickness where applicable, mounting arrangement, finish and quantity before ordering.
C-31 Glass-Mount Support-Bar Assembly
The C-31 Glass-Mount Support-Bar Assembly supports compatible frameless glass-door and architectural hardware installations. Its application-focused design helps create a clean and coordinated hardware layout.
Project selection
Please confirm the dimensions, finish and compatibility of the supplied configuration before ordering.
Ordering & project FAQs ↗ · Product buying guides ↗
Buyer FAQs
How do I match C-31 to the glass connection?
Provide glass thickness, bar profile, panel position and connection angle. Confirm matching glass-contact gaskets and any holes or cut-outs against the C-31 drawing before glass fabrication.
How do I confirm the matching bar and glass dimensions?
Send the actual bar profile and outside dimensions, plus glass thickness where the fitting contacts glass. Confirm insertion depth, clearances and any glass preparation against the supplier drawing before fabrication.
Which parts are included in the supply?
Request an itemized list of bars, connectors, caps, glass-contact gaskets, screws and mounting fittings. Confirm which parts are supplied with this model and which must be ordered separately.
Can the model name establish the assembly load rating?
No. The model name does not establish a load rating or suitability for every project. Provide panel dimensions, support-bar span, fixing surfaces and the full connection layout so the complete arrangement can be checked.
What is needed for a quotation?
Send C-31 Glass-Mount Support-Bar Assembly, quantity, bar dimensions, glass specification, connection drawing, required finish and delivery address with postcode. Include photographs when replacing existing hardware.
