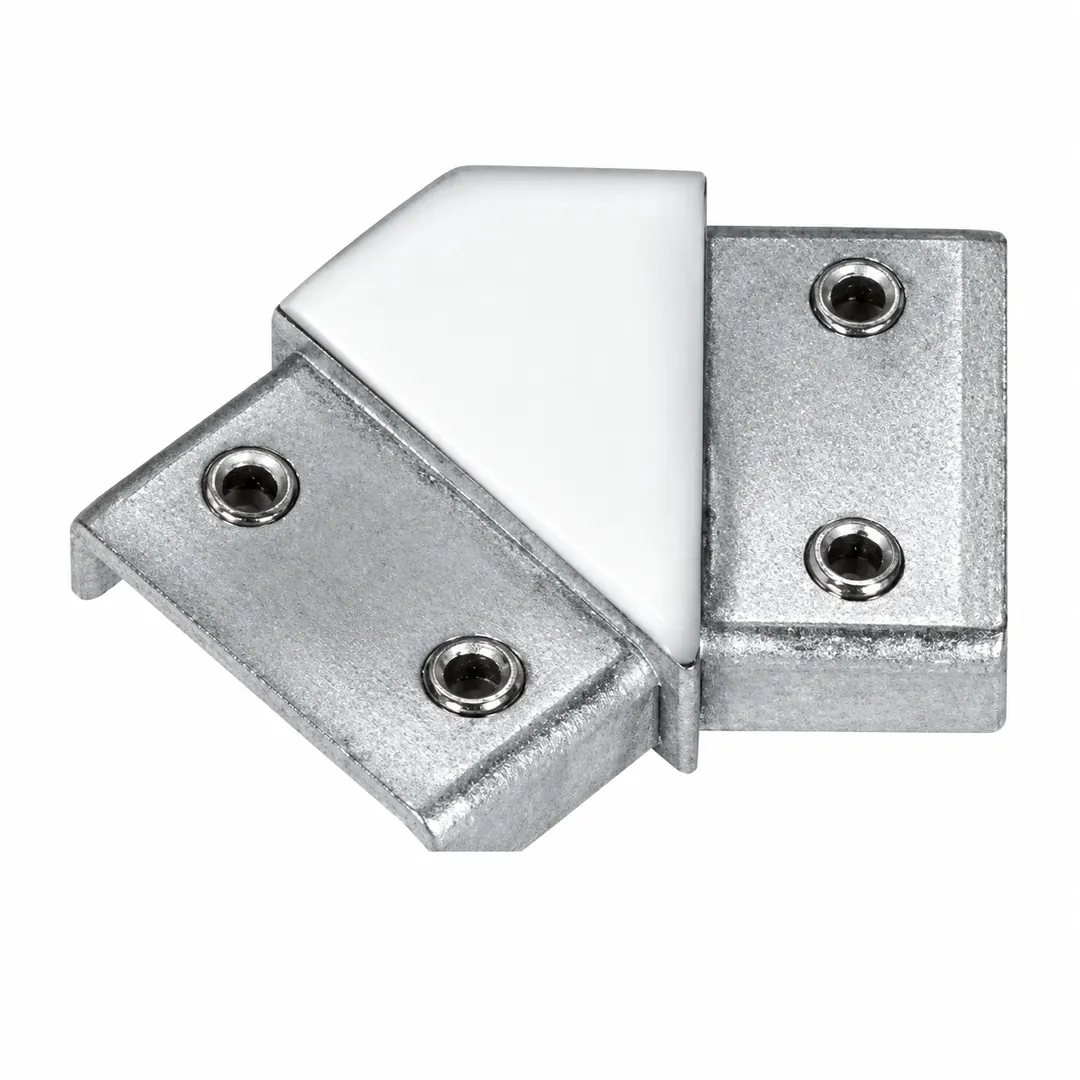

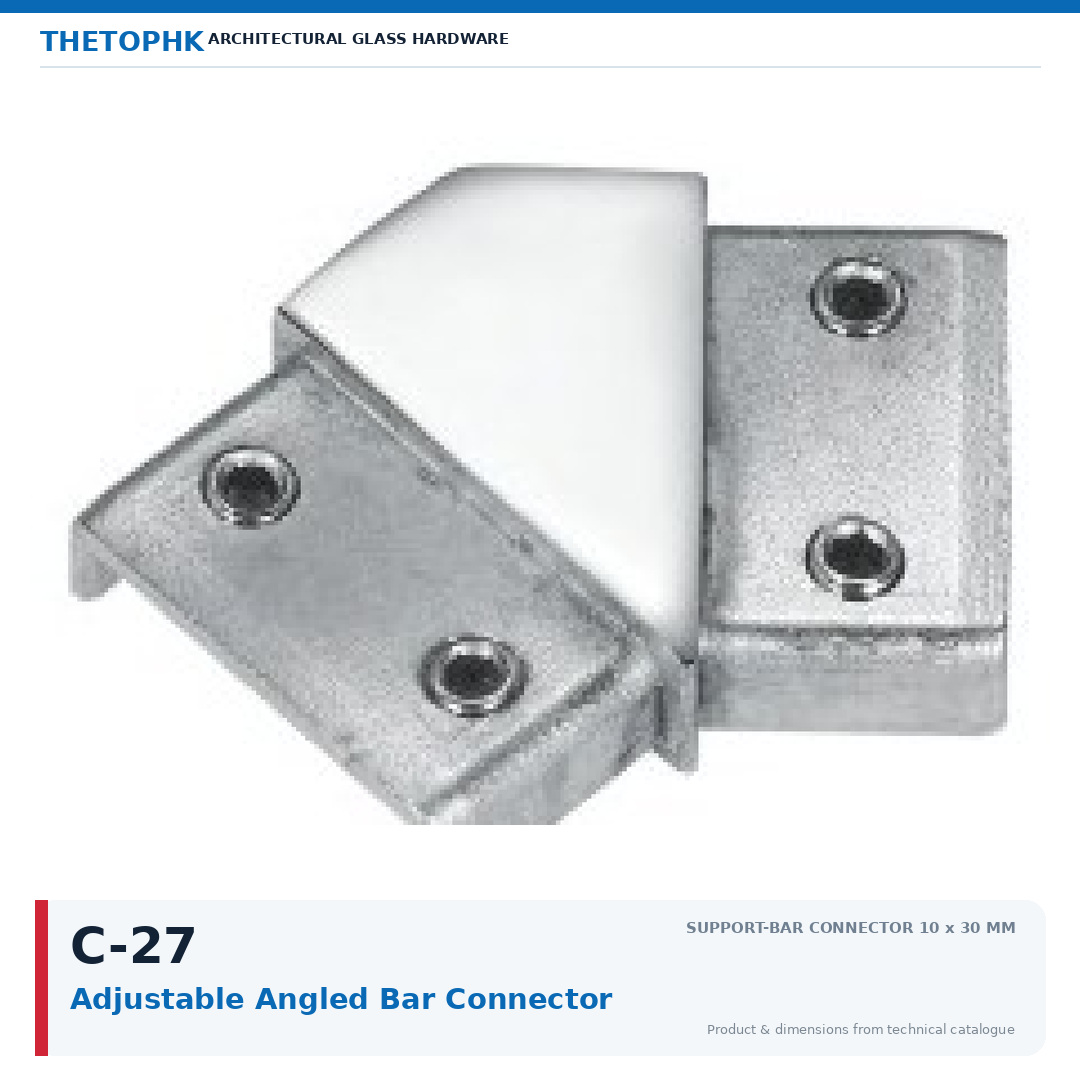

C-27 Adjustable Angled Bar Connector
C-27 Adjustable Angled Bar Connector is an adjustable angled connector for stabilizing fixed glass panels, shower screens and compatible architectural glass installations. Confirm bar/profile dimensions, glass thickness where applicable, mounting arrangement, finish and quantity before ordering.
C-27 Adjustable Angled Bar Connector
The C-27 Adjustable Angled Bar Connector connects and supports compatible bars used to stabilize fixed glass panels and shower enclosures. Its adjustable design helps create a clean and coordinated hardware layout.
Project selection
Please confirm the dimensions, finish and compatibility of the supplied configuration before ordering.
Ordering & project FAQs ↗ · Product buying guides ↗
Buyer FAQs
What adjustment is available for C-27?
Send the required connection angle or installed length, bar profile and fixing layout. Request the adjustment limits and locking instructions for the exact supplied C-27 version; the model name alone does not specify a range.
How do I confirm the matching bar and glass dimensions?
Send the actual bar profile and outside dimensions, plus glass thickness where the fitting contacts glass. Confirm insertion depth, clearances and any glass preparation against the supplier drawing before fabrication.
Which parts are included in the supply?
Request an itemized list of bars, connectors, caps, glass-contact gaskets, screws and mounting fittings. Confirm which parts are supplied with this model and which must be ordered separately.
Can the model name establish the assembly load rating?
No. The model name does not establish a load rating or suitability for every project. Provide panel dimensions, support-bar span, fixing surfaces and the full connection layout so the complete arrangement can be checked.
What is needed for a quotation?
Send C-27 Adjustable Angled Bar Connector, quantity, bar dimensions, glass specification, connection drawing, required finish and delivery address with postcode. Include photographs when replacing existing hardware.
