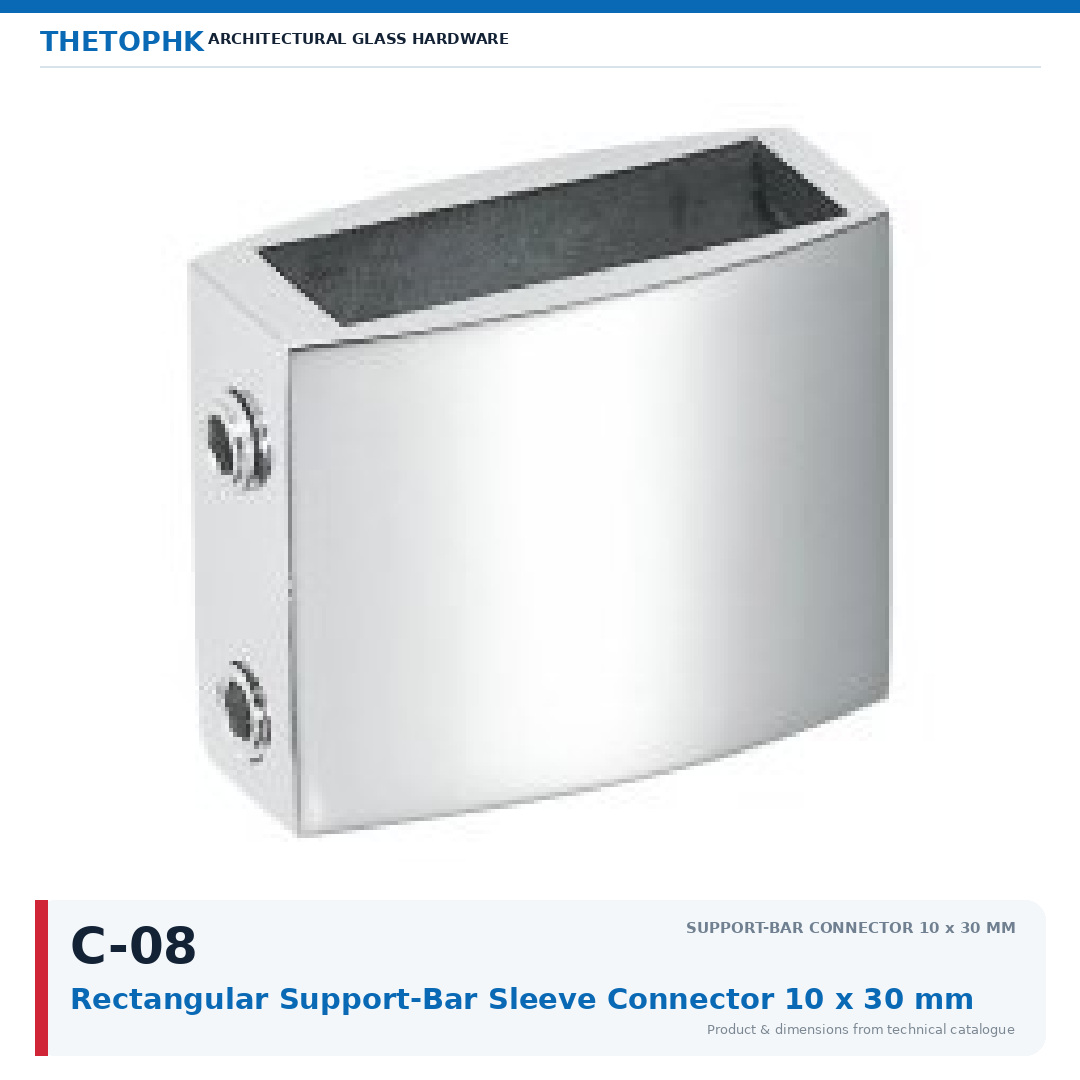

C-08 Rectangular Support-Bar Sleeve Connector 10 x 30 mm
C-08 Rectangular Support-Bar Sleeve Connector 10 x 30 mm is a rectangular sleeve connector for compatible 10 × 30 mm support bars used to stabilize fixed glass panels and shower enclosures. Confirm bar profile, glass thickness where applicable, mounting position, finish and quantity before ordering.
C-08 Rectangular Support-Bar Sleeve Connector 10 x 30 mm

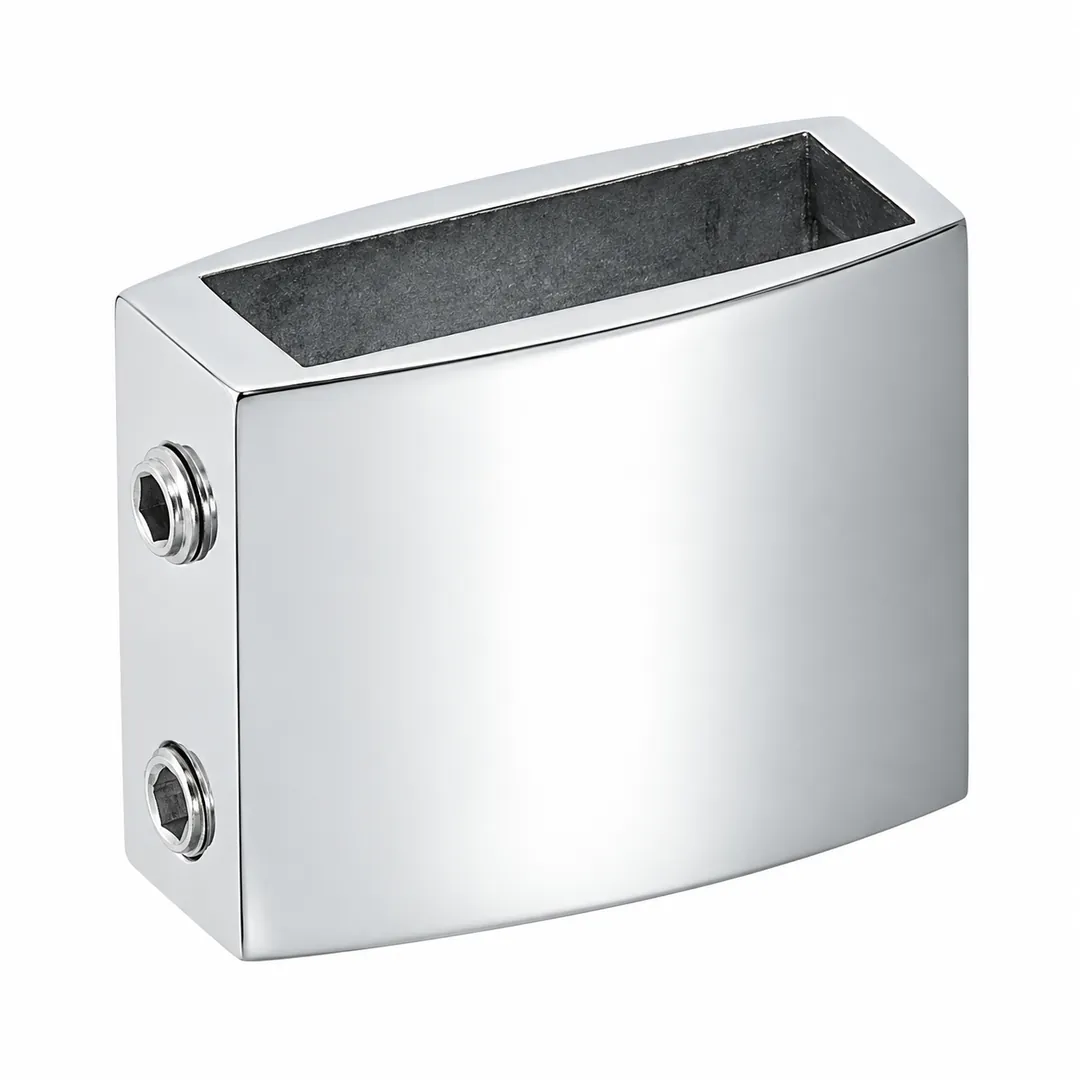

The C-08 Rectangular Support-Bar Sleeve Connector 10 x 30 mm joins compatible components in frameless glass-door, partition, and shower-enclosure installations. Its straight-edged design helps create a clean and coordinated hardware layout.
Project selection
Please confirm the dimensions, finish and compatibility of the supplied configuration before ordering.
Ordering & project FAQs ↗ · Product buying guides ↗
Buyer FAQs
How do I match the C-08 sleeve to my support bar?
Send the actual rectangular bar profile and outside dimensions. Confirm sleeve internal dimensions, insertion depth and retention method against the C-08 drawing; nominal profile dimensions alone do not establish interchangeable fit.
How do I confirm the matching bar and glass dimensions?
Send the actual bar profile and outside dimensions, plus glass thickness where the fitting contacts glass. Confirm insertion depth, clearances and any glass preparation against the supplier drawing before fabrication.
Which parts are included in the supply?
Request an itemized list of bars, connectors, caps, glass-contact gaskets, screws and mounting fittings. Confirm which parts are supplied with this model and which must be ordered separately.
Can the model name establish the assembly load rating?
No. The model name does not establish a load rating or suitability for every project. Provide panel dimensions, support-bar span, fixing surfaces and the full connection layout so the complete arrangement can be checked.
What is needed for a quotation?
Send C-08 Rectangular Support-Bar Sleeve Connector 10 x 30 mm, quantity, bar dimensions, glass specification, connection drawing, required finish and delivery address with postcode. Include photographs when replacing existing hardware.
