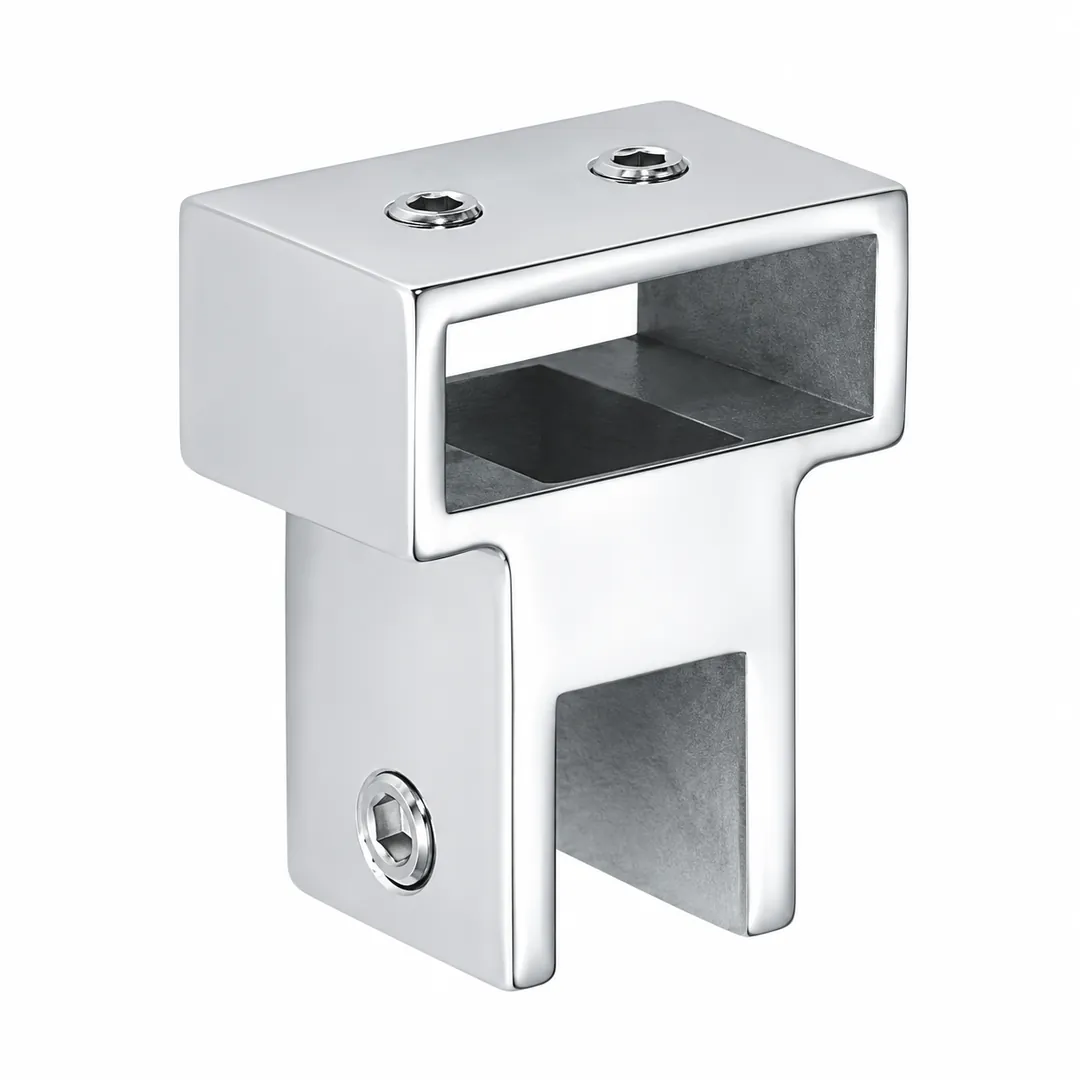

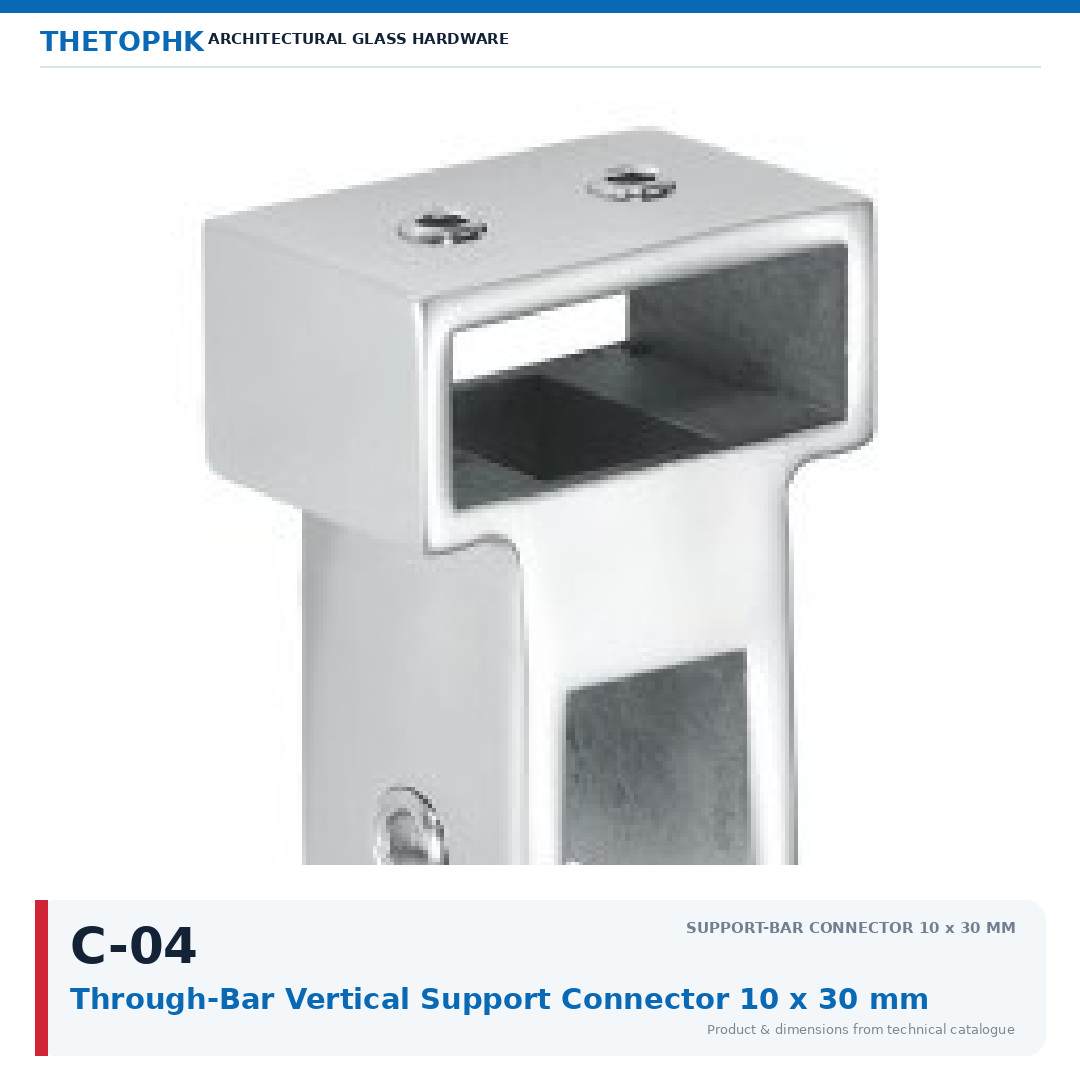

C-04 Through-Bar Vertical Support Connector 10 x 30 mm
C-04 Through-Bar Vertical Support Connector 10 x 30 mm is a through-bar vertical connector for compatible 10 × 30 mm support bars used to stabilize fixed glass panels and shower enclosures. Confirm bar profile, glass thickness where applicable, mounting position, finish and quantity before ordering.
C-04 Through-Bar Vertical Support Connector 10 x 30 mm
The C-04 Through-Bar Vertical Support Connector 10 x 30 mm joins compatible components in frameless glass-door, partition, and shower-enclosure installations. Its application-focused design helps create a clean and coordinated hardware layout.
Project selection
Please confirm the dimensions, finish and compatibility of the supplied configuration before ordering.
Ordering & project FAQs ↗ · Product buying guides ↗
Buyer FAQs
How do I specify the C-04 through-bar connection?
Provide a drawing showing the bar passing through the fitting and the vertical support position. Confirm passage dimensions, fixing method and clearance on both sides against the C-04 drawing.
How do I confirm the matching bar and glass dimensions?
Send the actual bar profile and outside dimensions, plus glass thickness where the fitting contacts glass. Confirm insertion depth, clearances and any glass preparation against the supplier drawing before fabrication.
Which parts are included in the supply?
Request an itemized list of bars, connectors, caps, glass-contact gaskets, screws and mounting fittings. Confirm which parts are supplied with this model and which must be ordered separately.
Can the model name establish the assembly load rating?
No. The model name does not establish a load rating or suitability for every project. Provide panel dimensions, support-bar span, fixing surfaces and the full connection layout so the complete arrangement can be checked.
What is needed for a quotation?
Send C-04 Through-Bar Vertical Support Connector 10 x 30 mm, quantity, bar dimensions, glass specification, connection drawing, required finish and delivery address with postcode. Include photographs when replacing existing hardware.
