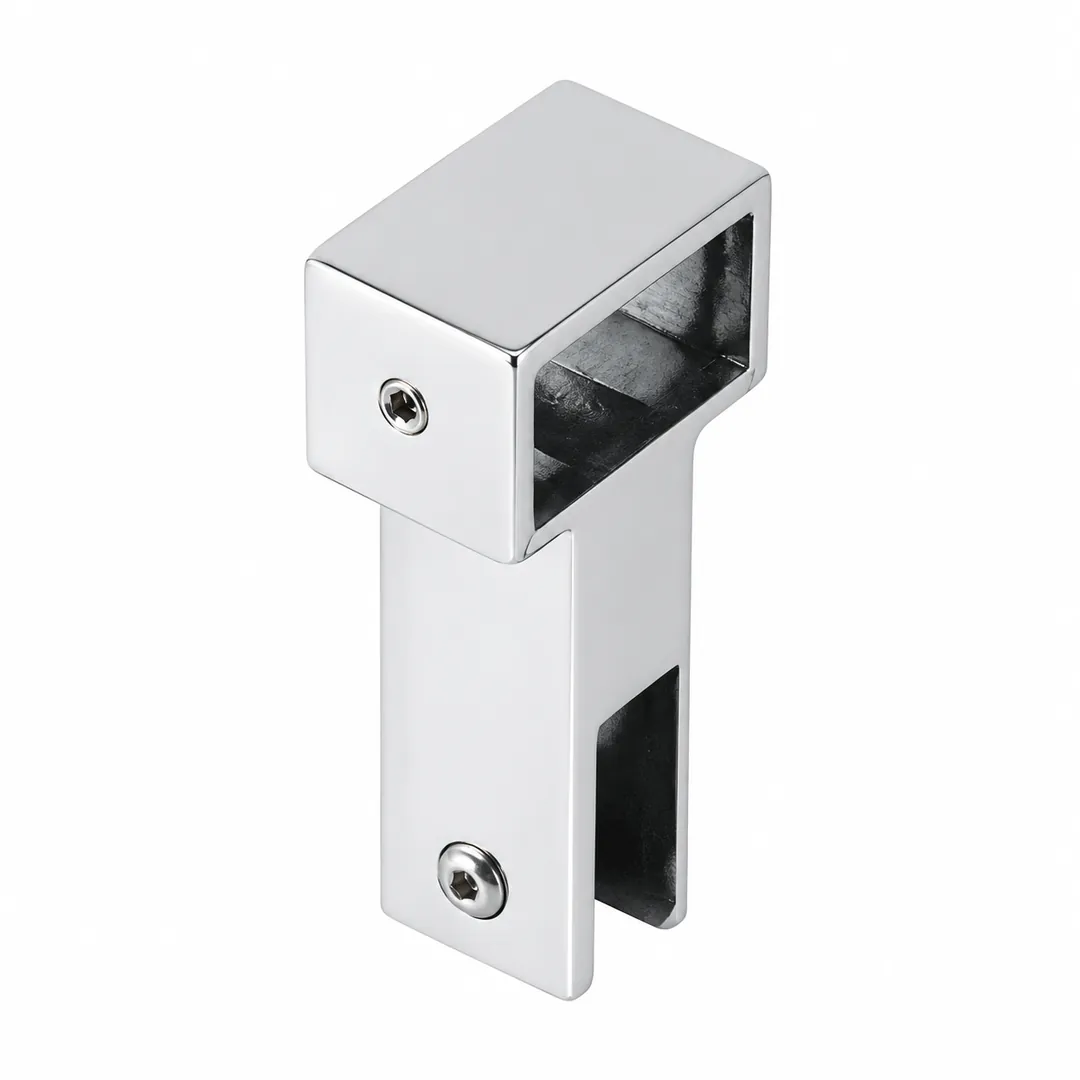

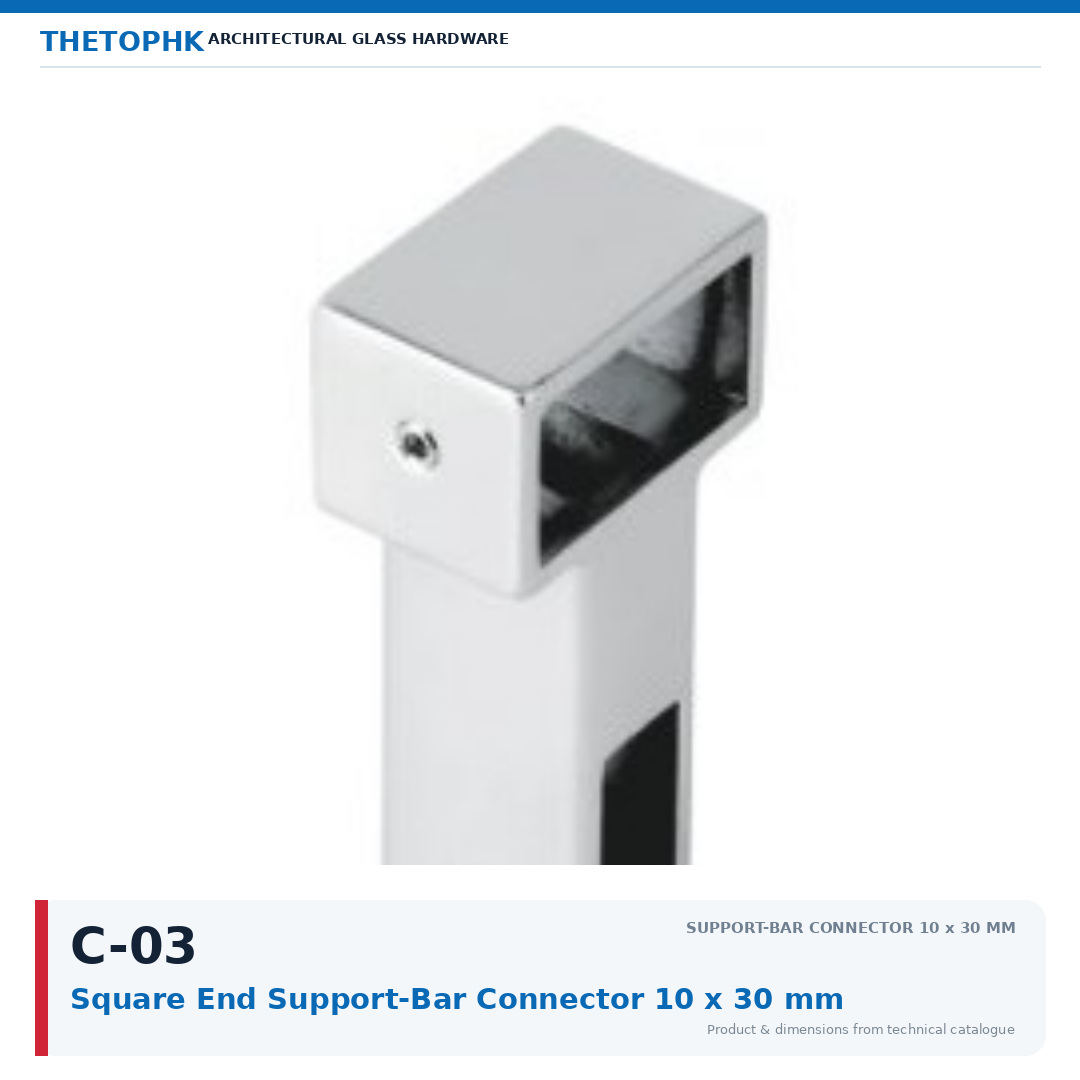

C-03 Square End Support-Bar Connector 10 x 30 mm

The C-03 Square End Support-Bar Connector 10 x 30 mm connects and supports compatible bars used to stabilize fixed glass panels and shower enclosures. Its straight-edged design helps create a clean and coordinated hardware layout.

Project selection

Please confirm the dimensions, finish and compatibility of the supplied configuration before ordering.

Ordering & project FAQs ↗ · Product buying guides ↗

Buyer FAQs

How do I match the C-03 square end connector?

Send the bar profile, end position and available clearance. Confirm the connector body dimensions, insertion depth and retention method against the C-03 drawing before ordering.

How do I confirm the matching bar and glass dimensions?

Send the actual bar profile and outside dimensions, plus glass thickness where the fitting contacts glass. Confirm insertion depth, clearances and any glass preparation against the supplier drawing before fabrication.

Which parts are included in the supply?

Request an itemized list of bars, connectors, caps, glass-contact gaskets, screws and mounting fittings. Confirm which parts are supplied with this model and which must be ordered separately.

Can the model name establish the assembly load rating?

No. The model name does not establish a load rating or suitability for every project. Provide panel dimensions, support-bar span, fixing surfaces and the full connection layout so the complete arrangement can be checked.

What is needed for a quotation?

Send C-03 Square End Support-Bar Connector 10 x 30 mm, quantity, bar dimensions, glass specification, connection drawing, required finish and delivery address with postcode. Include photographs when replacing existing hardware.
