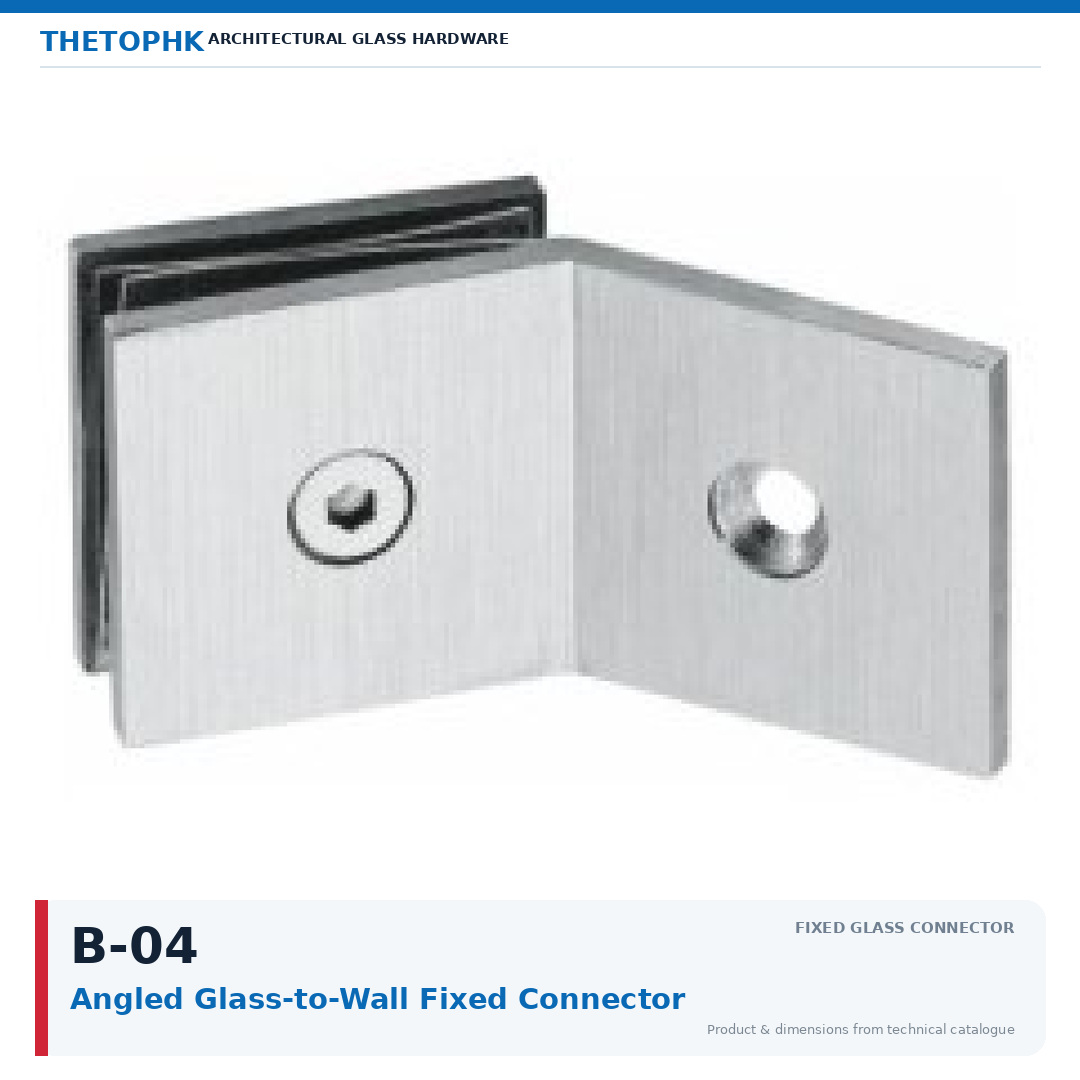

B-04 Angled Glass-to-Wall Fixed Connector
angled glass-to-wall fixed connector for frameless glass panels. Suitable for fixed glass partitions, shower enclosures and architectural glass installations. Confirm glass thickness, exact fitting dimensions, mounting position, finish and quantity before ordering.
B-04 Angled Glass-to-Wall Fixed Connector

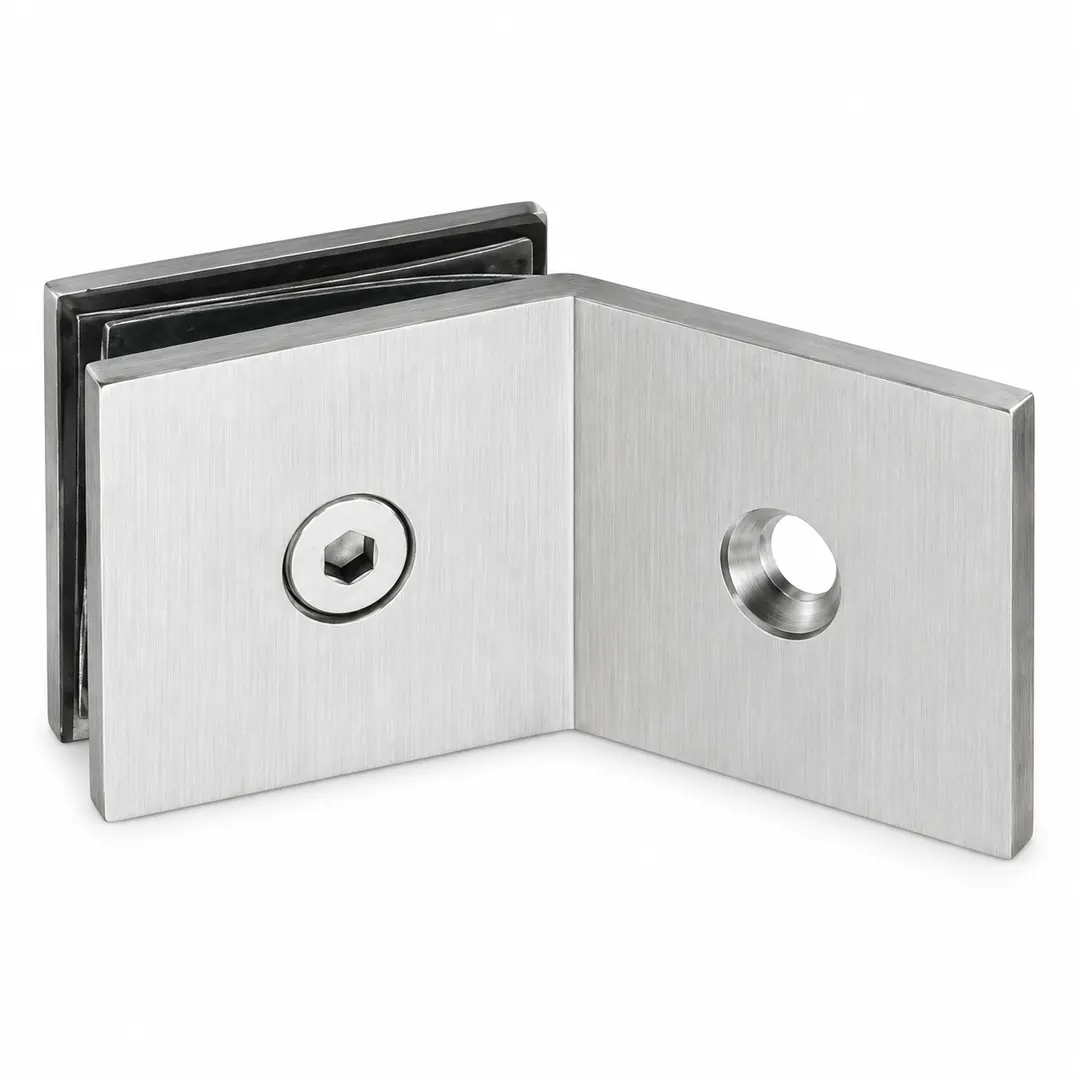

The B-04 Angled Glass-to-Wall Fixed Connector joins fixed glass panels to walls or adjacent panels in frameless partitions and shower enclosures. Its angle-specific design helps create a clean and coordinated hardware layout.
Project selection
Please confirm the dimensions, finish and compatibility of the supplied configuration before ordering.
Ordering & project FAQs ↗ · Product buying guides ↗
Buyer FAQs
What should I check for this wall connection?
For B-04, send the wall substrate, glass position, fixing location and required connection angle. Confirm the fixing-hole layout, glass-side preparation and compatible anchors against the supplied drawing.
How do I confirm glass thickness and preparation?
Send the actual glass thickness and glass specification. Request the matching connector and gasket configuration, and confirm whether holes or cut-outs are required against the supplier drawing before glass fabrication.
Are gaskets, screws and other fittings included?
Ask for an itemized supply list covering the connector body, glass-contact gaskets, screws and mounting fittings. Confirm compatible components and installation instructions for the exact supplied configuration.
Can the model name confirm load capacity or suitability?
No. The model name and appearance do not establish a load rating or suitability for every installation. Provide panel dimensions, supporting connections, intended use and project requirements so the complete fixed-glass arrangement can be checked.
What is needed for a quotation?
Send B-04 Angled Glass-to-Wall Fixed Connector, quantity, glass specification, panel dimensions, connection drawing, required finish and delivery address with postcode. Include photographs when replacing existing hardware.
