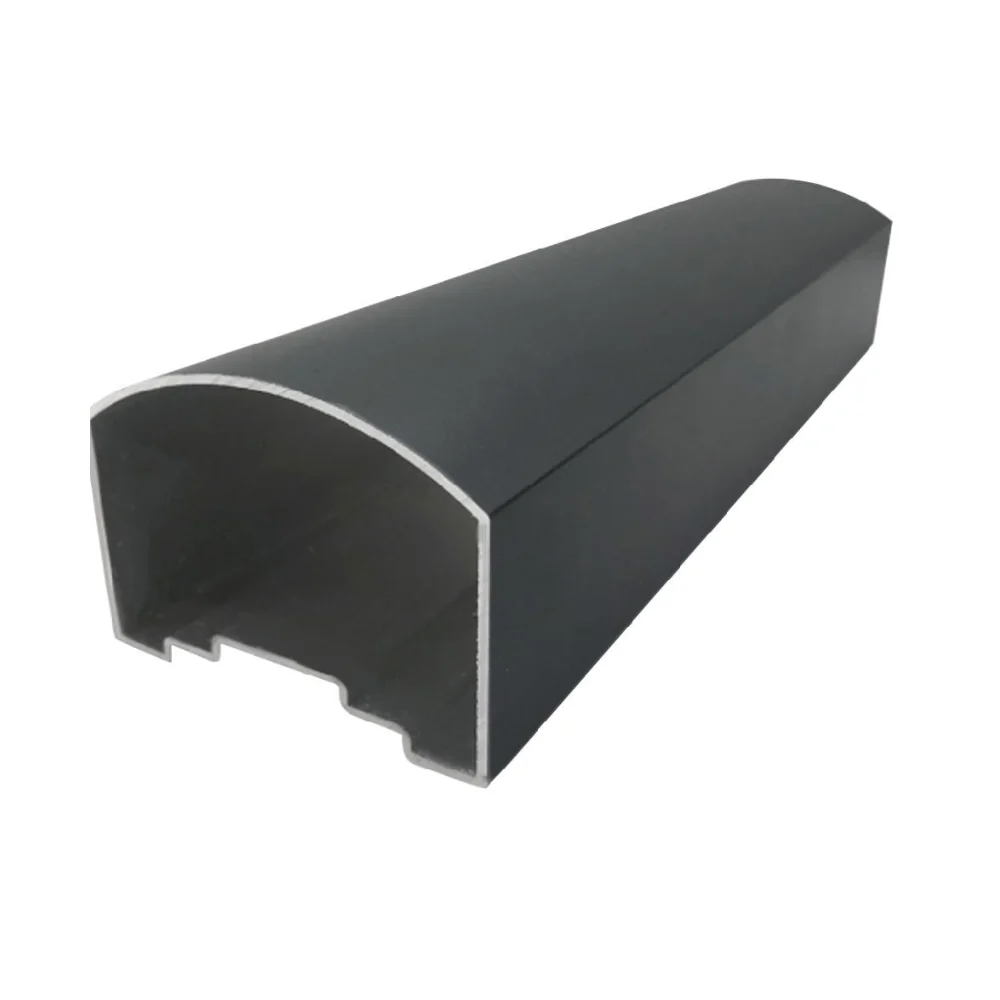

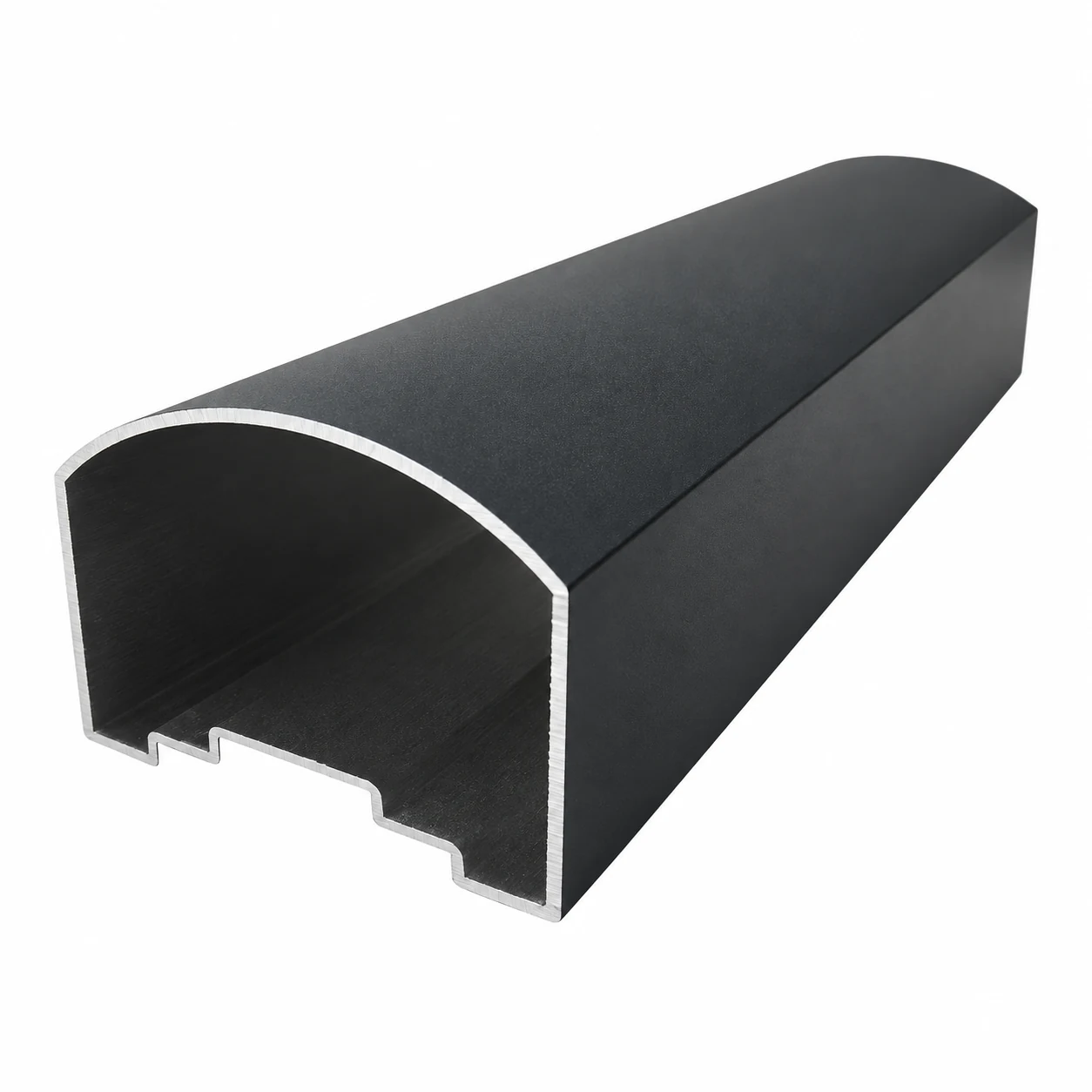

72 x 52 mm Arched Aluminum Glass Handrail
72 × 52 mm arched aluminum glass handrail with a 1.5 mm wall and 4 m supplied length. For approximately 10–20 mm glass; confirm post connections, glass fixing and finish for your project.
Request a quotation
Please send model, quantity, railing layout, glass thickness, required profile lengths, finish, mounting details, destination country and postal code. We will confirm compatibility and shipping before quoting.
72 x 52 mm Arched Aluminum Glass Handrail
The 72 × 52 mm arched aluminum glass handrail has a curved upper profile for staircase and railing installations.
Specifications
| Material | Aluminum |
|---|---|
| Profile | 72 × 52 mm, arched |
| Wall thickness | 1.5 mm |
| Length | 4 m; confirm supplied length |
| Compatible glass | Approximately 10–20 mm; confirm glass and fixing fit |
| Finish | Confirm required finish and availability |
Project configuration
Provide your glass thickness, post type, railing layout, handrail connection details, required lengths, finish and quantity. The post connection and glass fixing method must be confirmed for the selected configuration.
Confirm matching fittings and their supply scope separately. Structural suitability and local installation requirements must be confirmed for the project.
Before Ordering
Confirm the profile drawing, glass or post connection, gasket configuration where applicable, required lengths, joints and finish before fabrication. For replacements, provide photos and dimensions of the existing handrail section, connection and end components.
Buyer FAQs
How do I select the arched profile?
Compare the arched section, glass connection and required installation geometry with the dimensional drawing. Send panel dimensions, glass build-up and connection details for confirmation.
How do I specify lengths and quantities?
Send a railing layout with each run and required length identified. Confirm supplied lengths, any cutting requirements, joints and quantity before quotation.
Which connectors and end parts should I request?
Provide straight runs, corners, slope transitions and termination details. Confirm compatible joints, brackets and end caps for the selected profile, and ask which parts are included.
Can the profile dimensions confirm system suitability?
No. Confirm the complete handrail and railing arrangement, mounting connections and intended installation requirements. Request the relevant product drawing and configuration details for your project.
What information is needed for a quotation?
Send 72 x 52 mm Arched Aluminum Glass Handrail, required lengths and quantity, railing drawing, post or glass connection details, glass specification where applicable, required finish, delivery address and postcode.
