40 x 40 mm Aluminum Glass Slot Handrail
40 × 40 mm aluminum glass-slot handrail with a 1.1 mm wall and LED-strip provision. Supplied length: 4 m; for approximately 10–12 mm glass. Confirm glass fit, finish and matching accessories before ordering.
Request a quotation
Please send model, quantity, railing layout, glass thickness, required profile lengths, finish, mounting details, destination country and postal code. We will confirm compatibility and shipping before quoting.
40 x 40 mm Aluminum Glass Slot Handrail

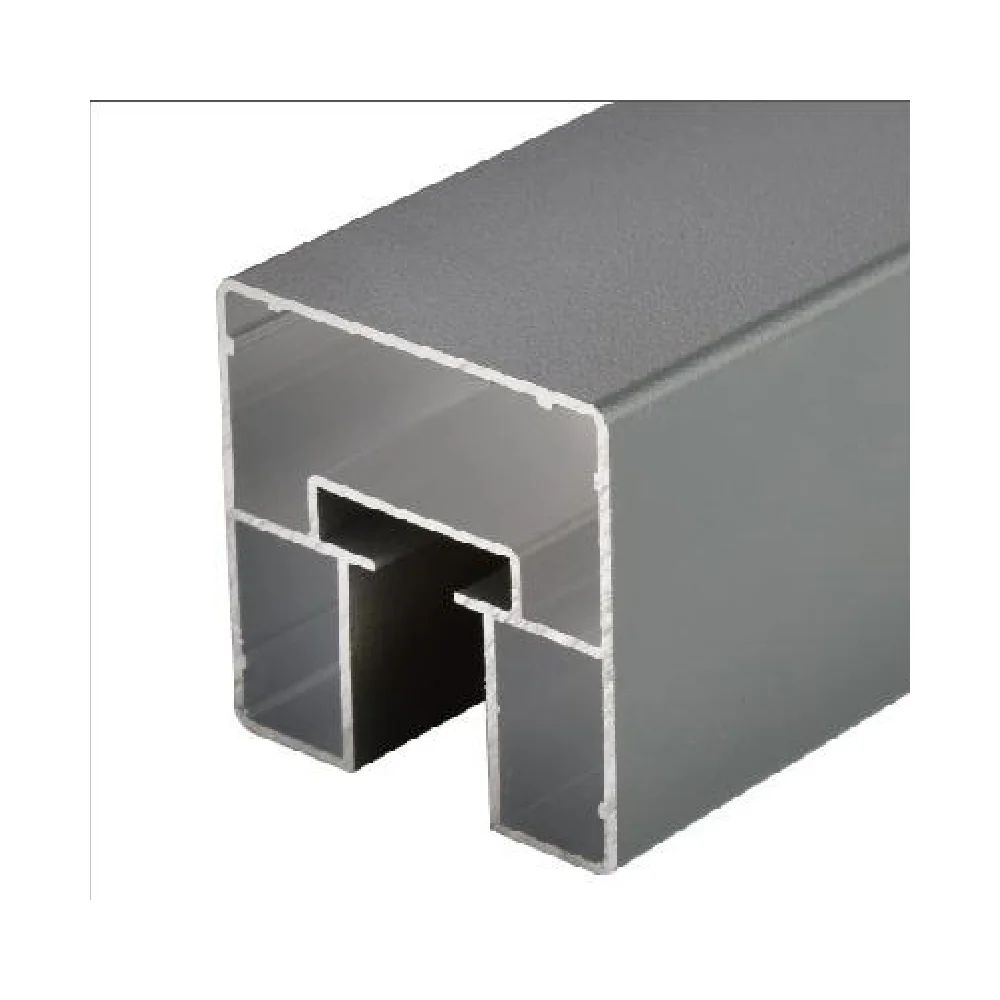

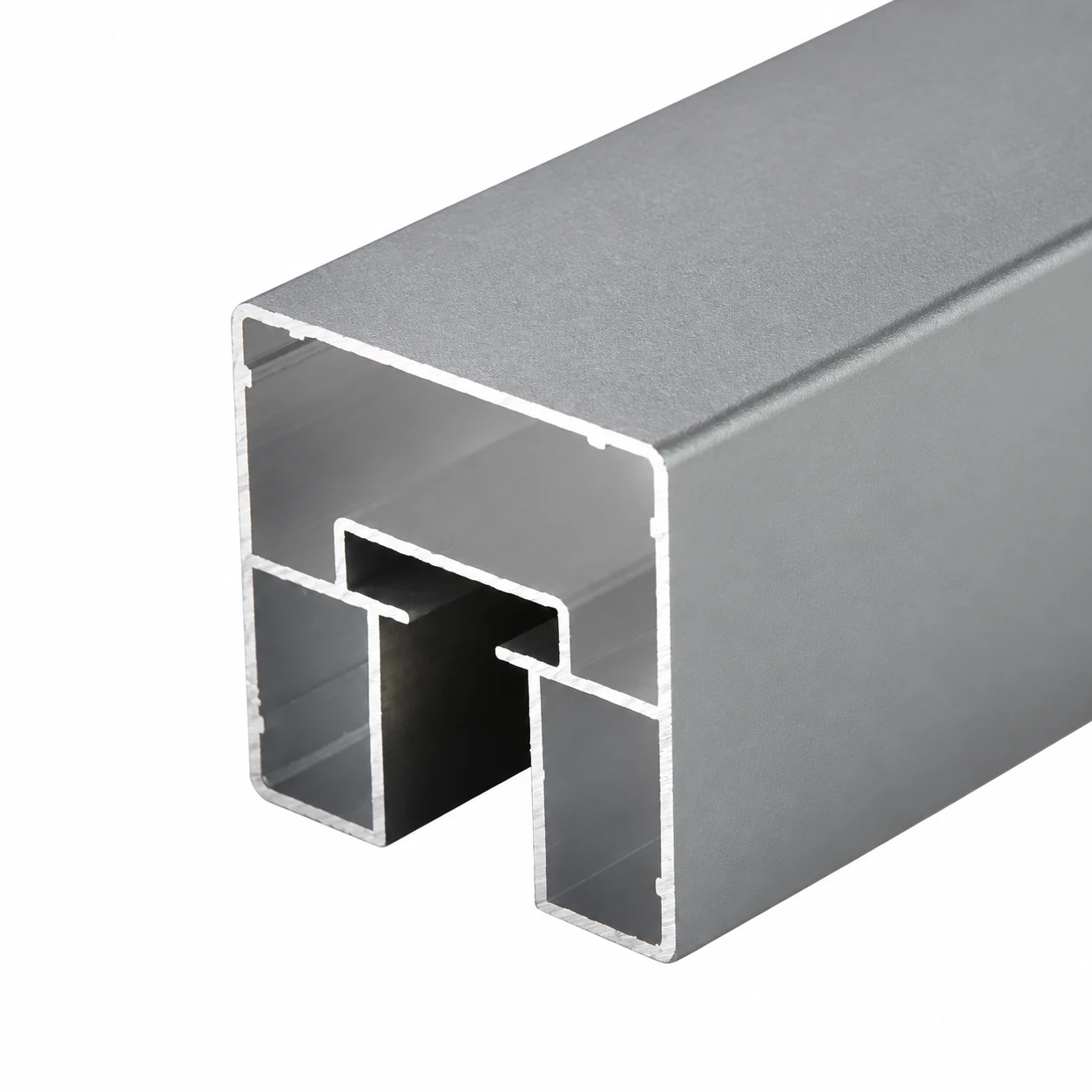

The 40 × 40 mm aluminum glass-slot handrail is a compact profile for staircase and glass railing installations, with provision for an LED strip.
Specifications
| Material | Aluminum alloy |
|---|---|
| Profile | 40 × 40 mm |
| Wall thickness | 1.1 mm |
| Length | 4 m; confirm supplied length |
| Compatible glass | Approximately 10–12 mm; confirm glass and gasket fit |
| Finish | Customizable colors; confirm availability |
| LED provision | Profile provision for an LED strip; lighting components and supply confirmed separately |
Project configuration
Confirm the glass thickness, required lengths, finish and railing layout before ordering. Select matching connectors, end caps and bends separately; catalog illustrations do not confirm that these accessories are included.
Provide mounting details and project drawings so that the profile and accessories can be checked for your installation. Structural suitability and local installation requirements must be confirmed for the project.
Before Ordering
Confirm the profile drawing, glass or post connection, gasket configuration where applicable, required lengths, joints and finish before fabrication. For replacements, provide photos and dimensions of the existing handrail section, connection and end components.
Buyer FAQs
How do I confirm glass-slot compatibility?
Provide the actual glass thickness and build-up, panel dimensions and installation drawing. Confirm slot dimensions, glass seating and matching gasket configuration for the exact handrail profile.
How do I specify lengths and quantities?
Send a railing layout with each run and required length identified. Confirm supplied lengths, any cutting requirements, joints and quantity before quotation.
Which connectors and end parts should I request?
Provide straight runs, corners, slope transitions and termination details. Confirm compatible joints, brackets and end caps for the selected profile, and ask which parts are included.
Can the profile dimensions confirm system suitability?
No. Confirm the complete handrail and railing arrangement, mounting connections and intended installation requirements. Request the relevant product drawing and configuration details for your project.
What information is needed for a quotation?
Send 40 x 40 mm Aluminum Glass Slot Handrail, required lengths and quantity, railing drawing, post or glass connection details, glass specification where applicable, required finish, delivery address and postcode.
